Frame Material: Carbon Front Triangle
Battery: 800Wh
Wheels: 29" x 27.5"
Headset Angle Adjustment: 0.6°
Details

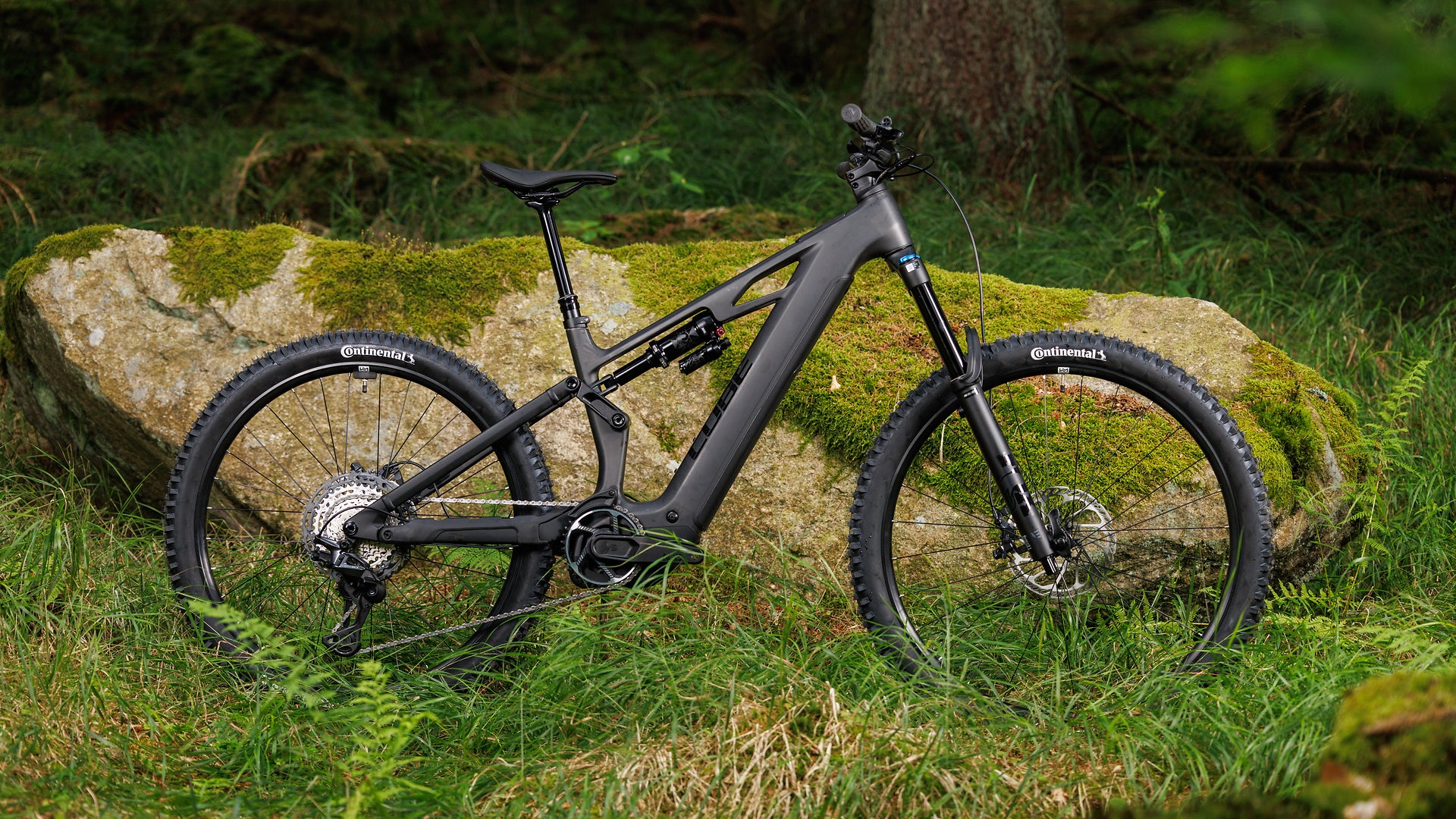

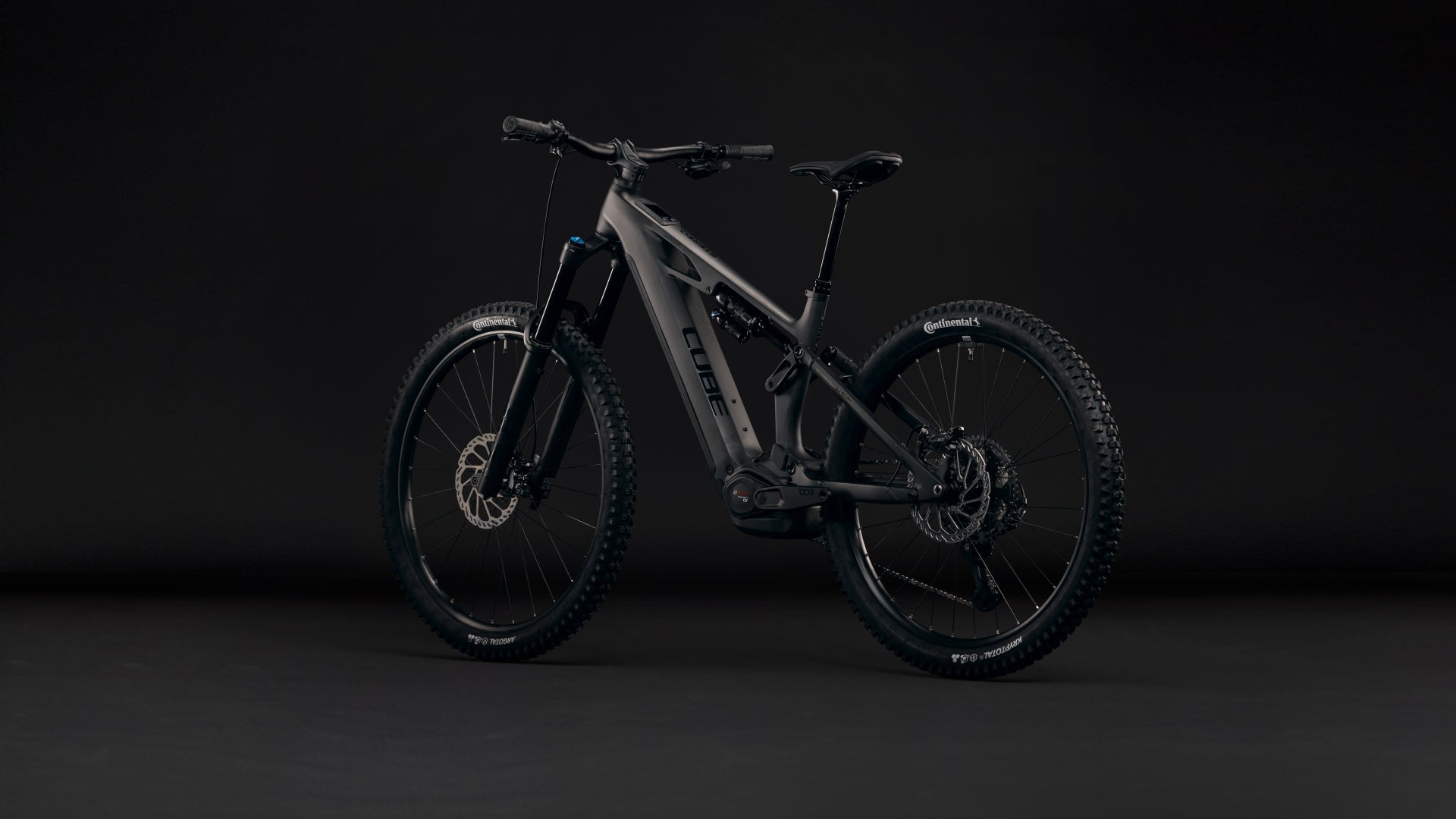

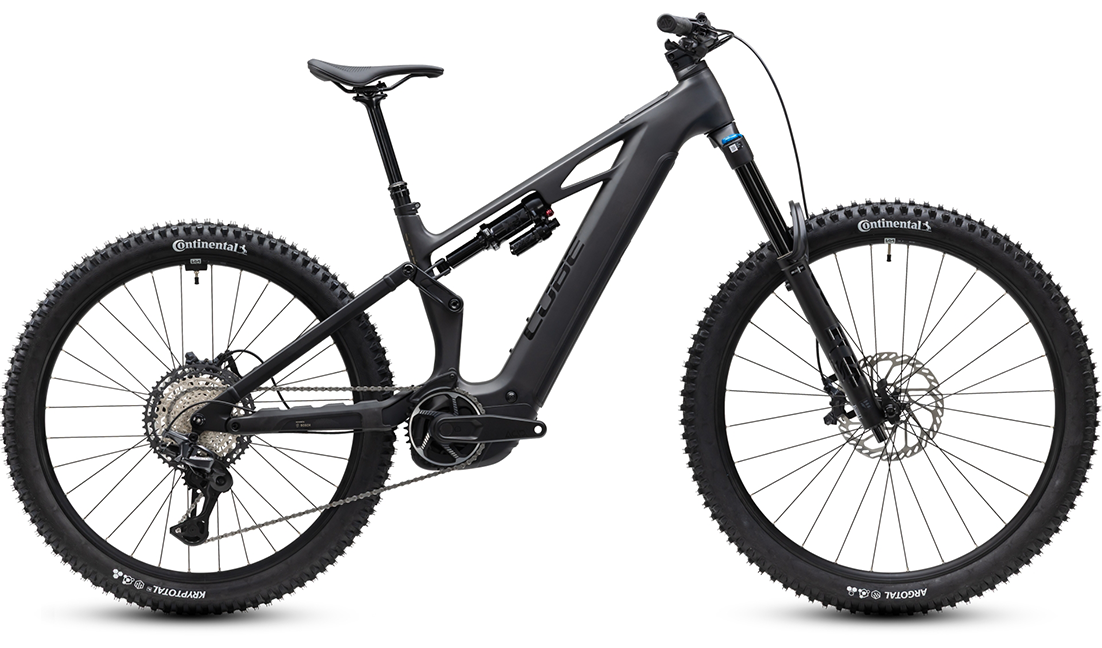

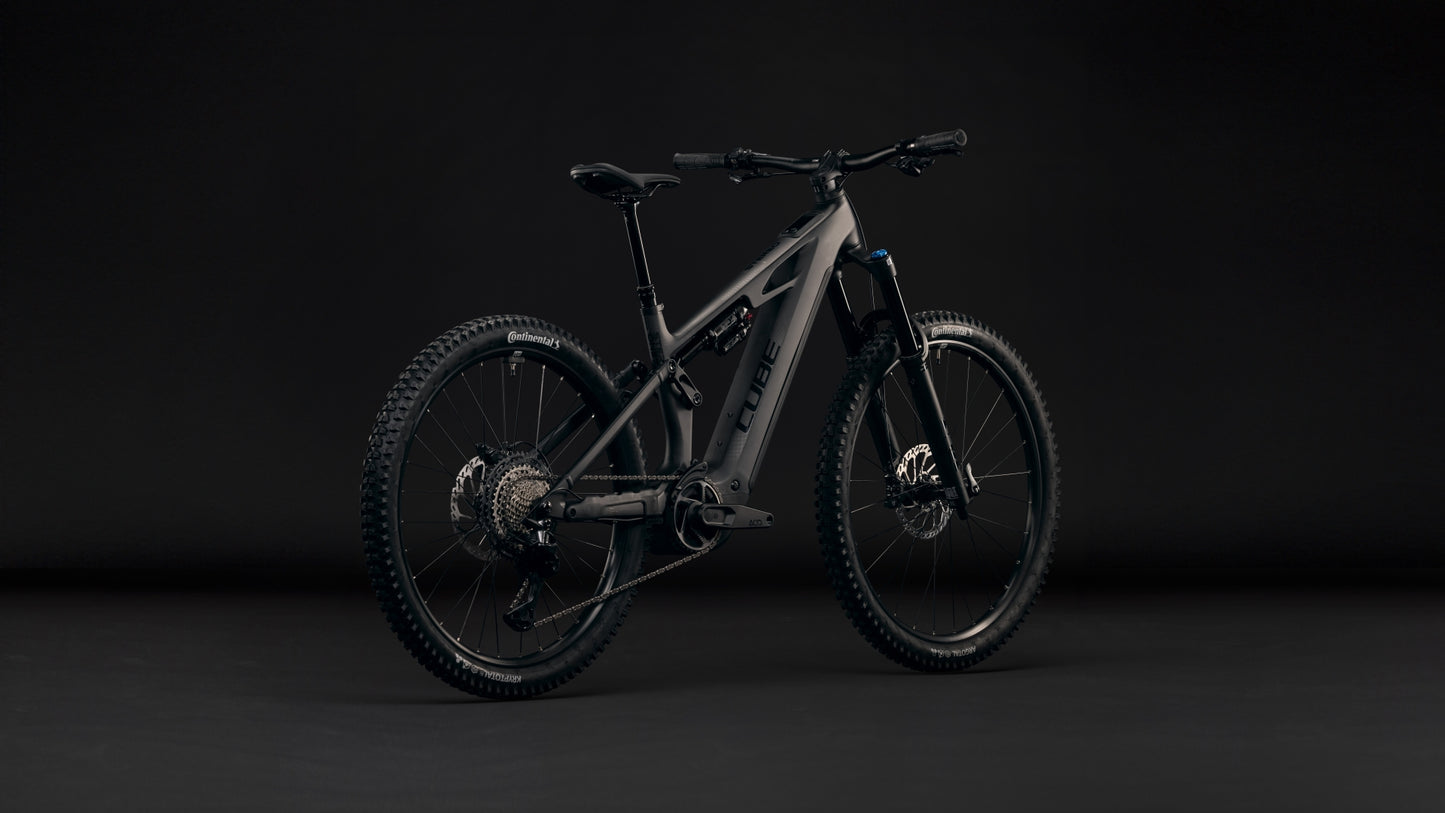

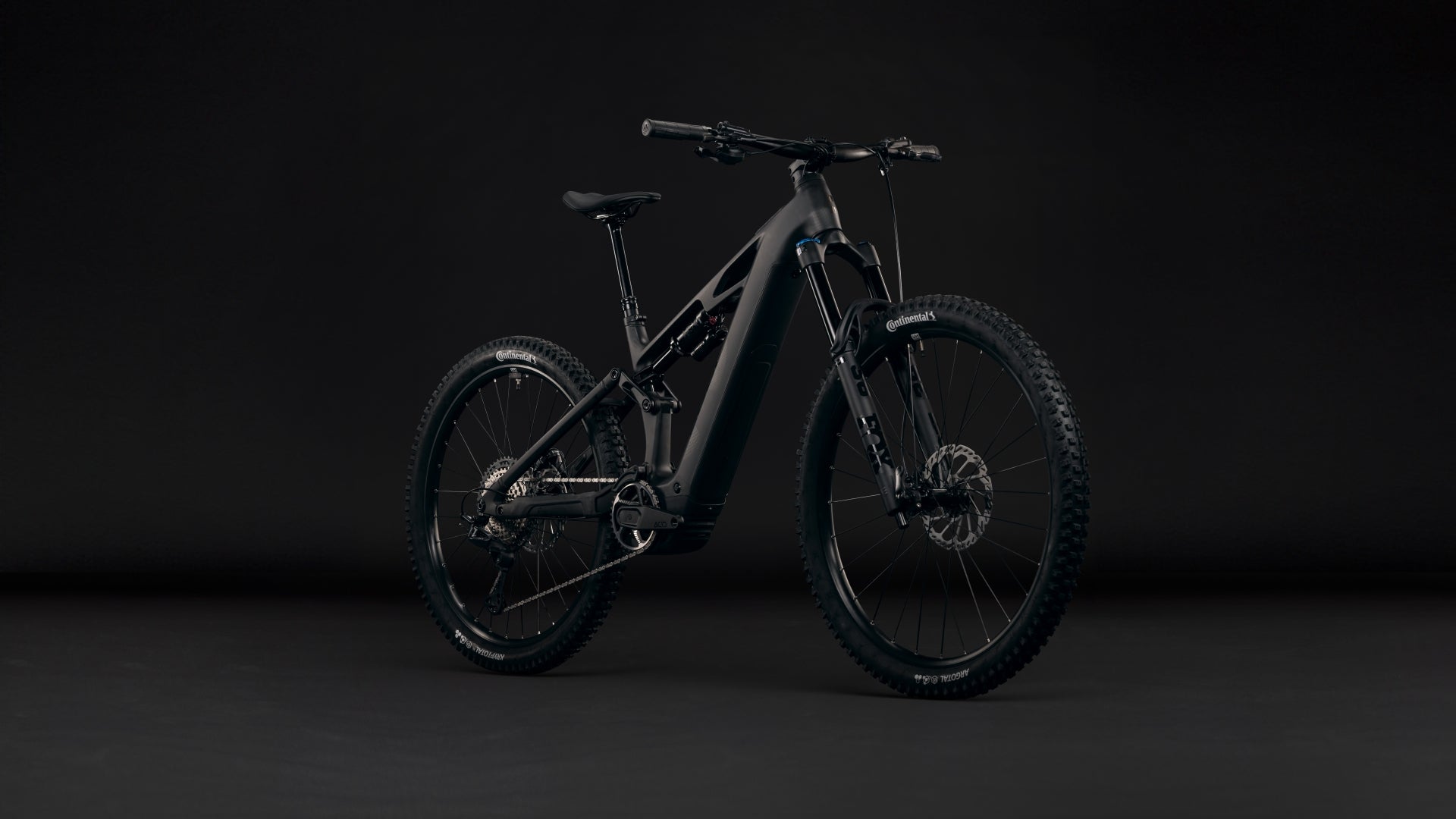

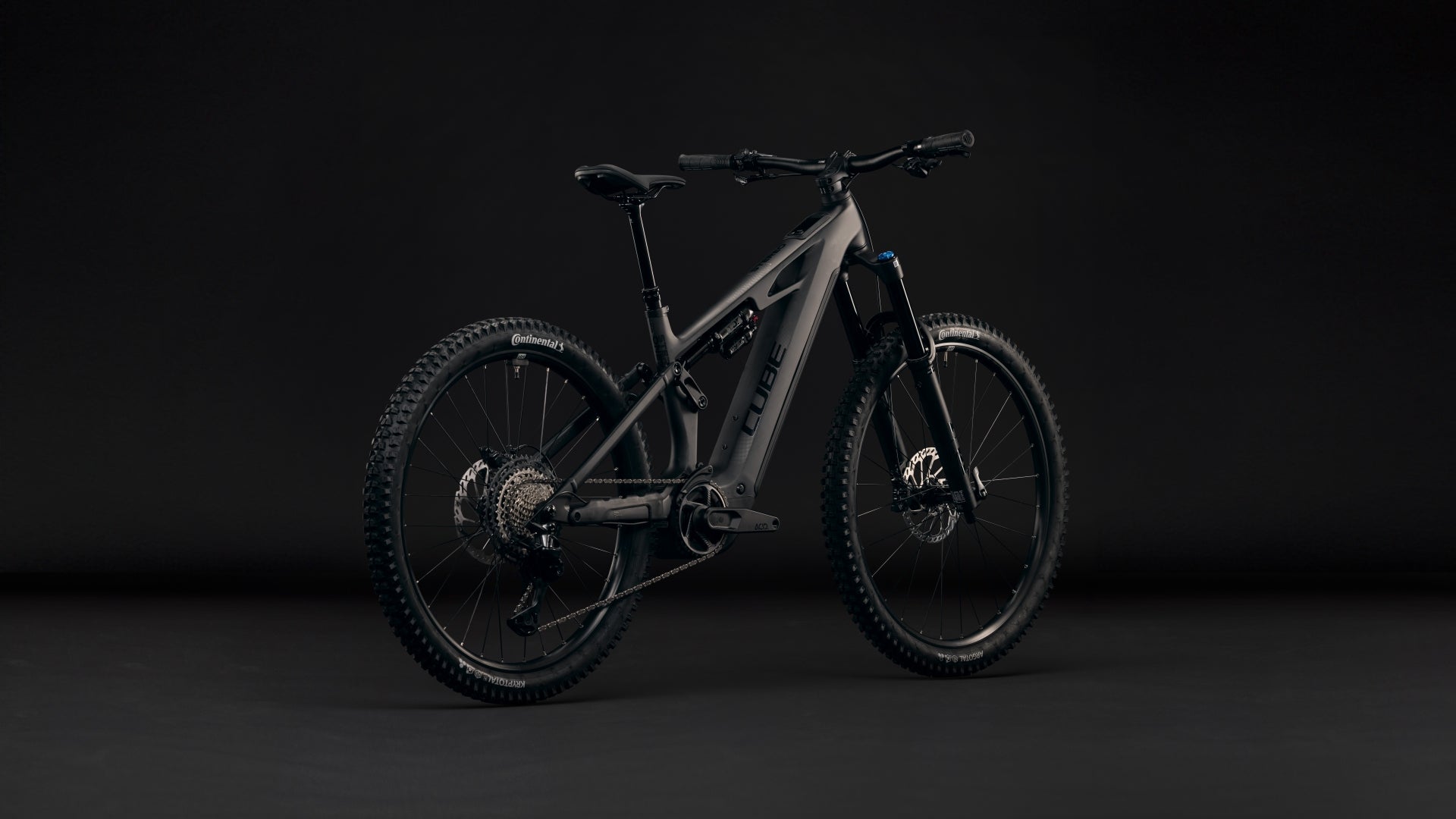

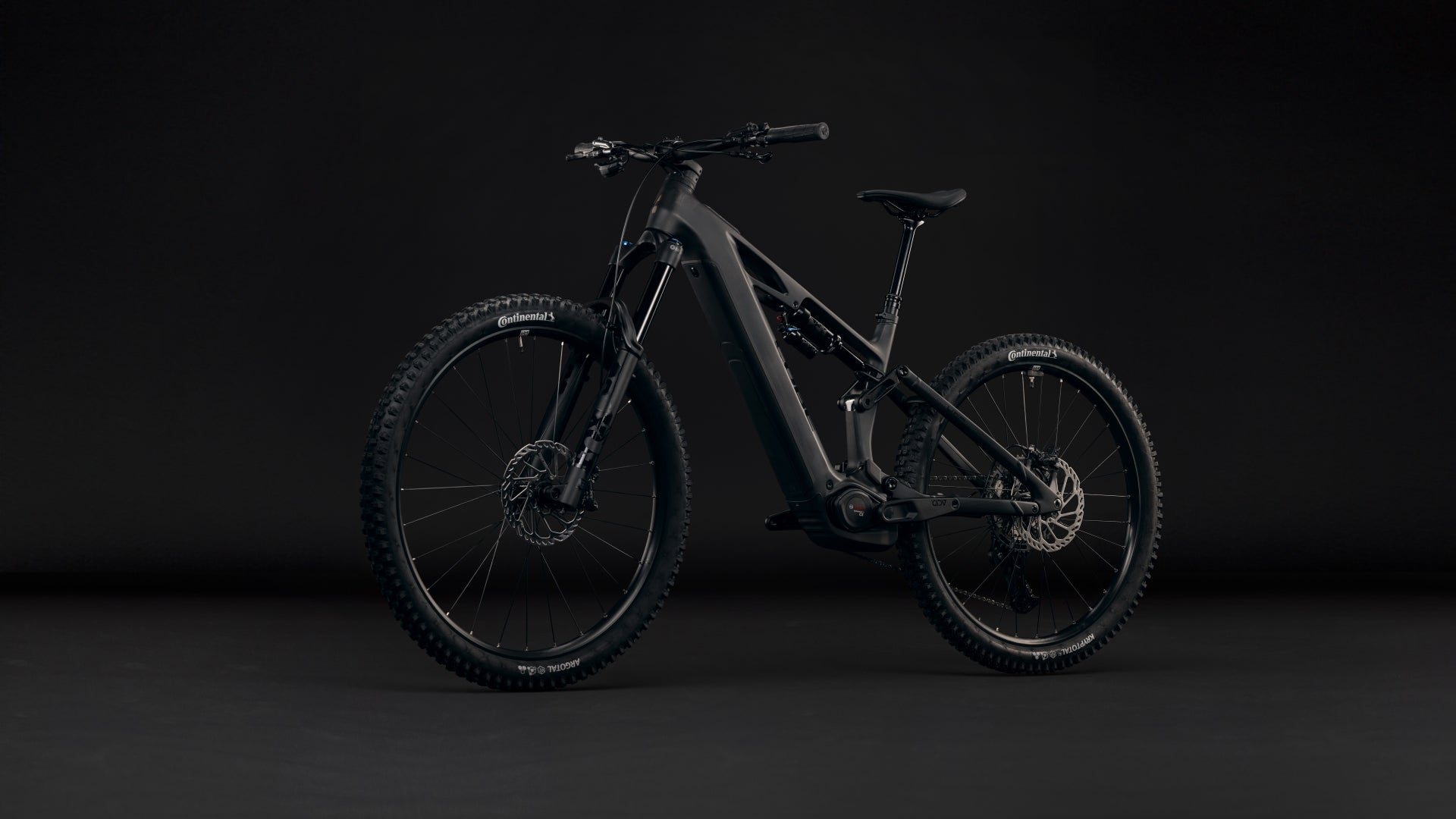

A bike that's truly at home in big mountain settings must be able to climb and descend equally well. With its Bosch CX drive, HPC carbon frame and carefully selected components, the Stereo Hybrid ONE77 HPC SLX ticks all the right boxes. No question – it's ready for the big time. Are you?

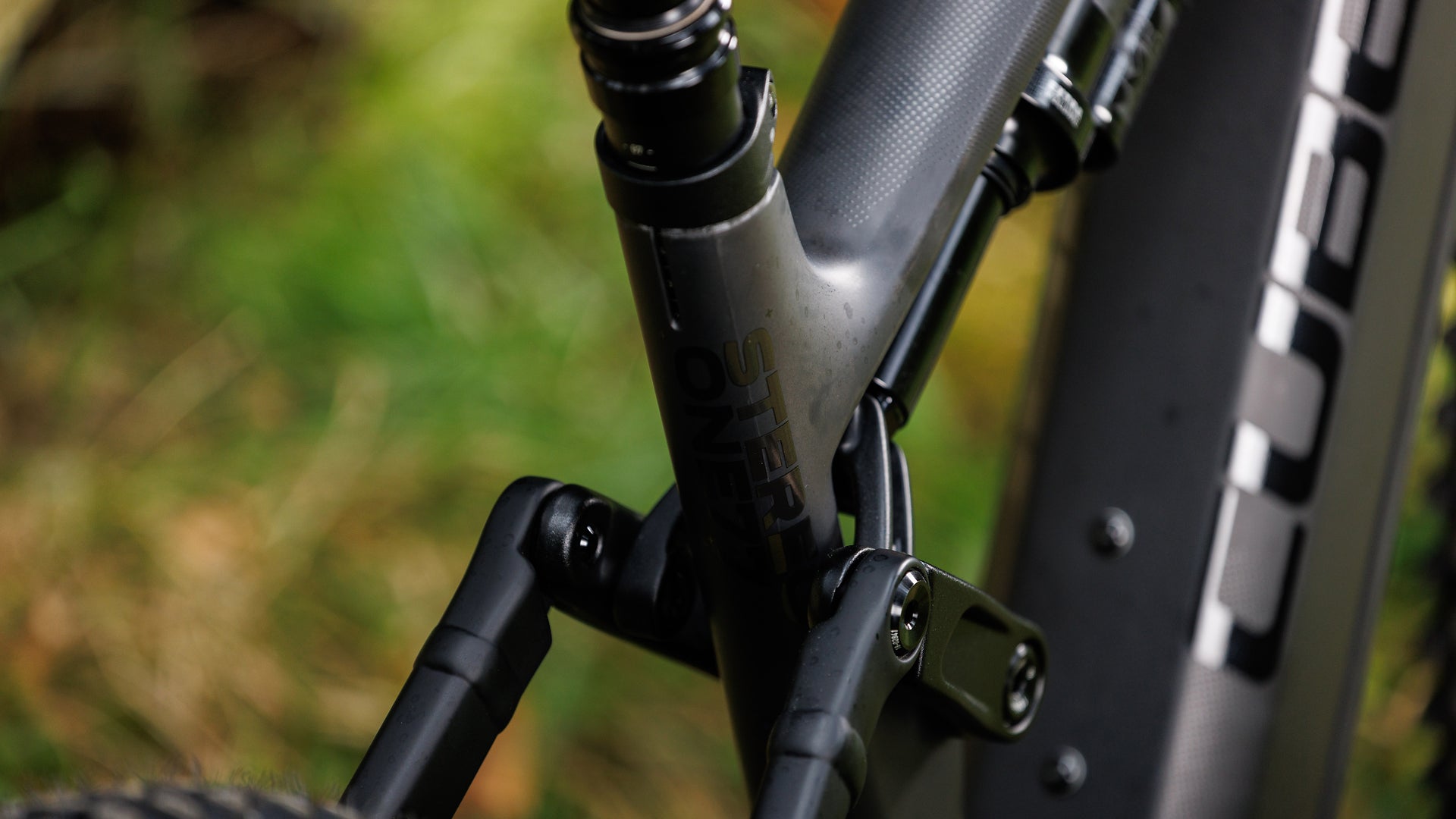

Frame
frame

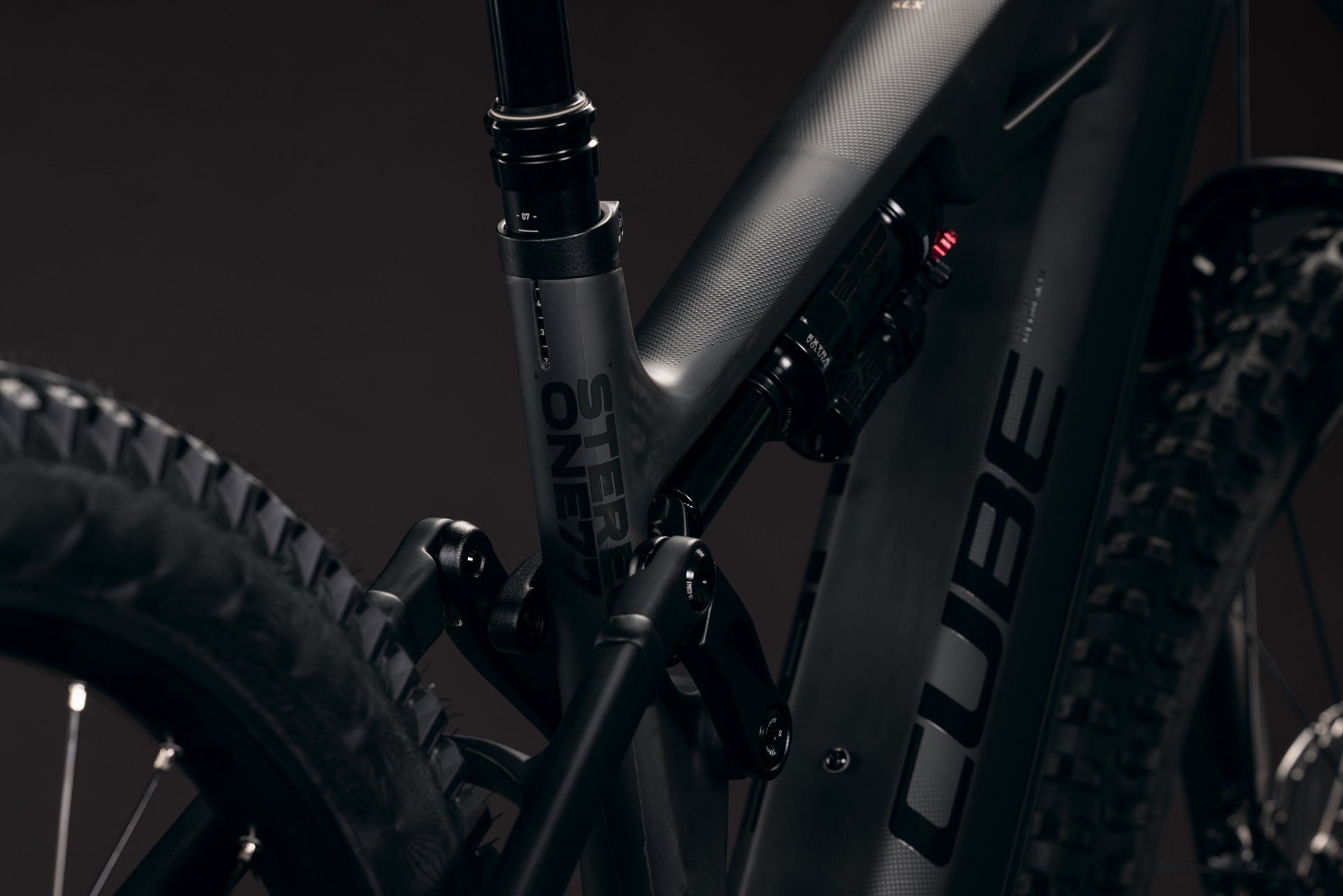

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
size
S, M, L, XL
Suspension
Suspension fork

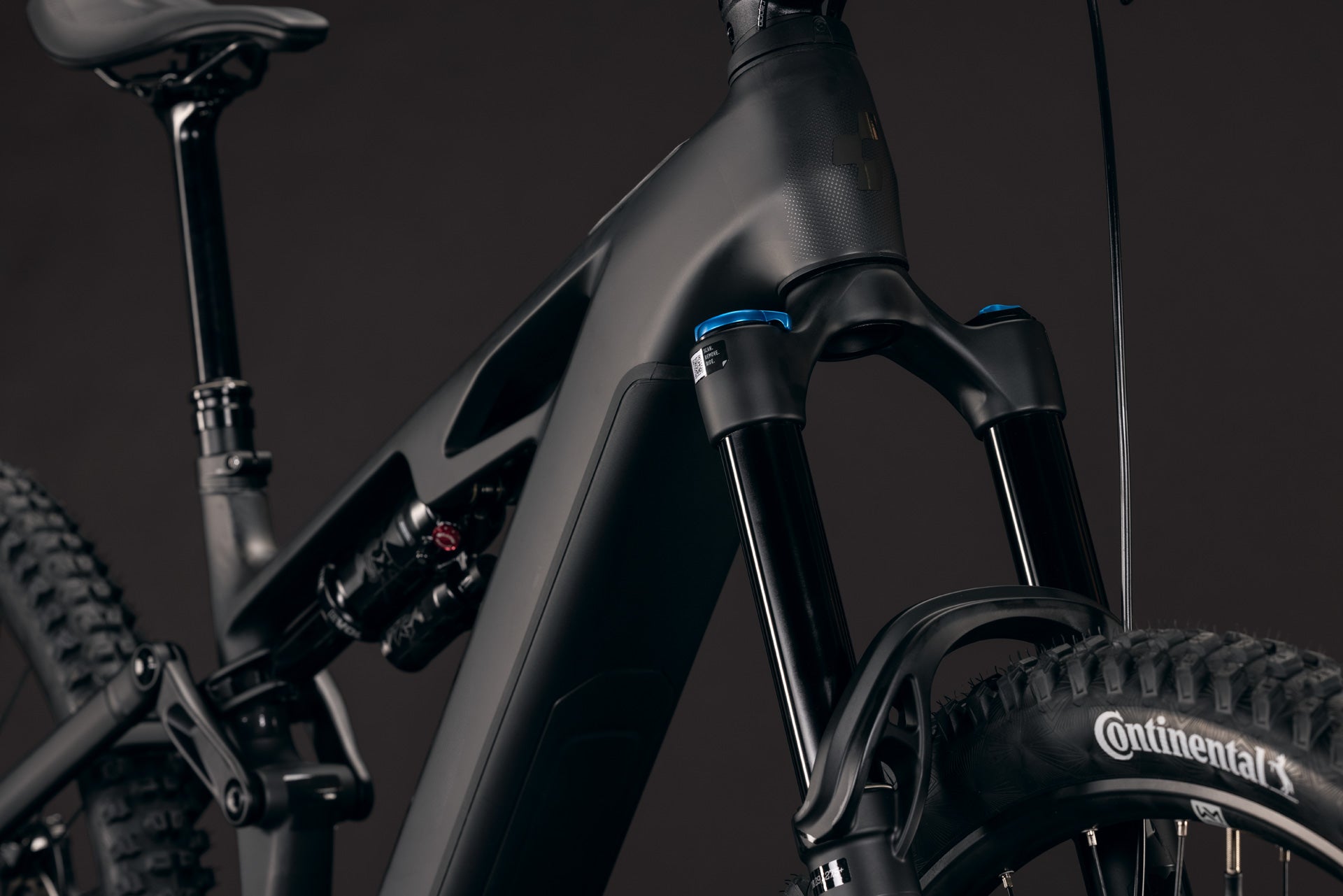

Fox 38 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm

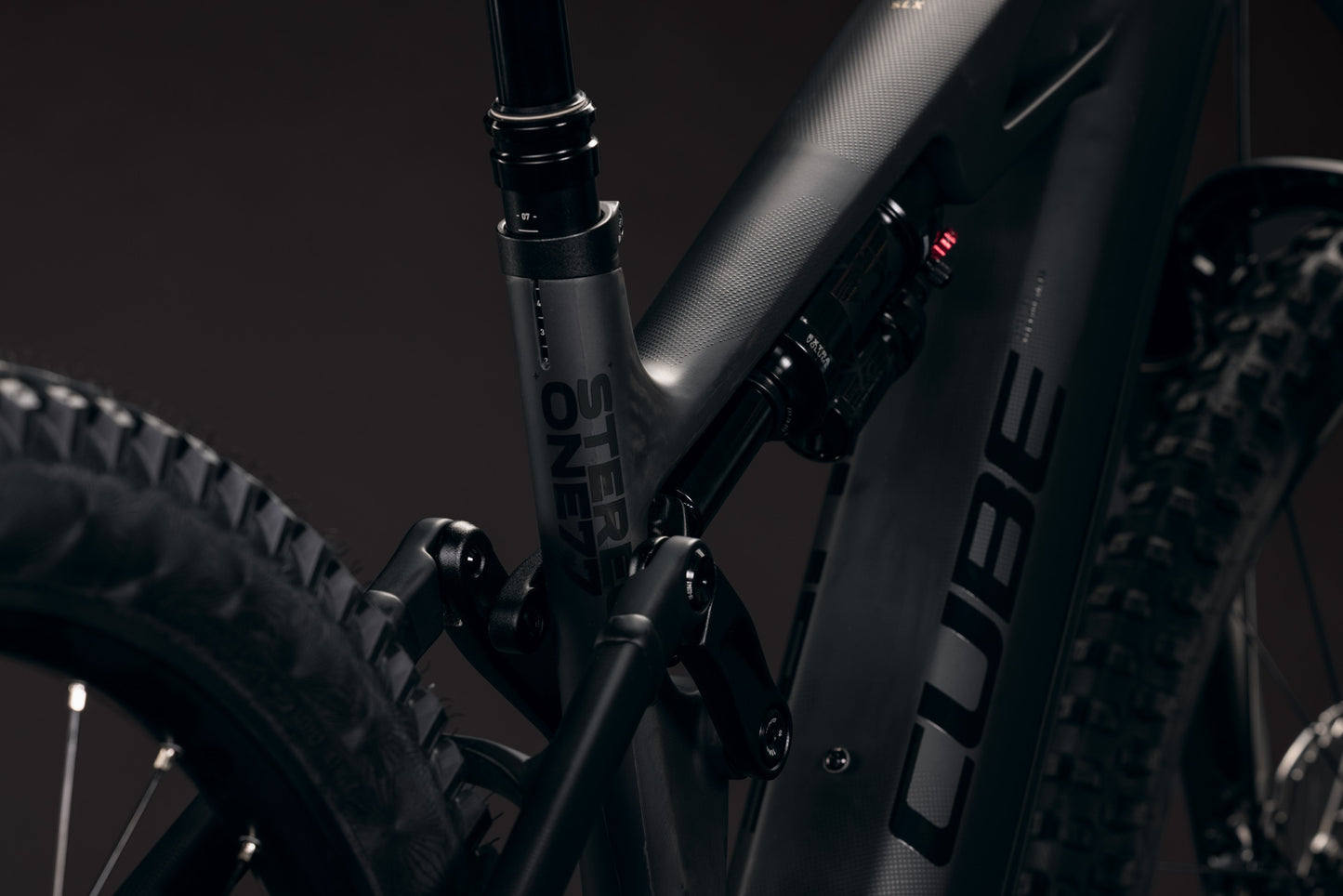

shock

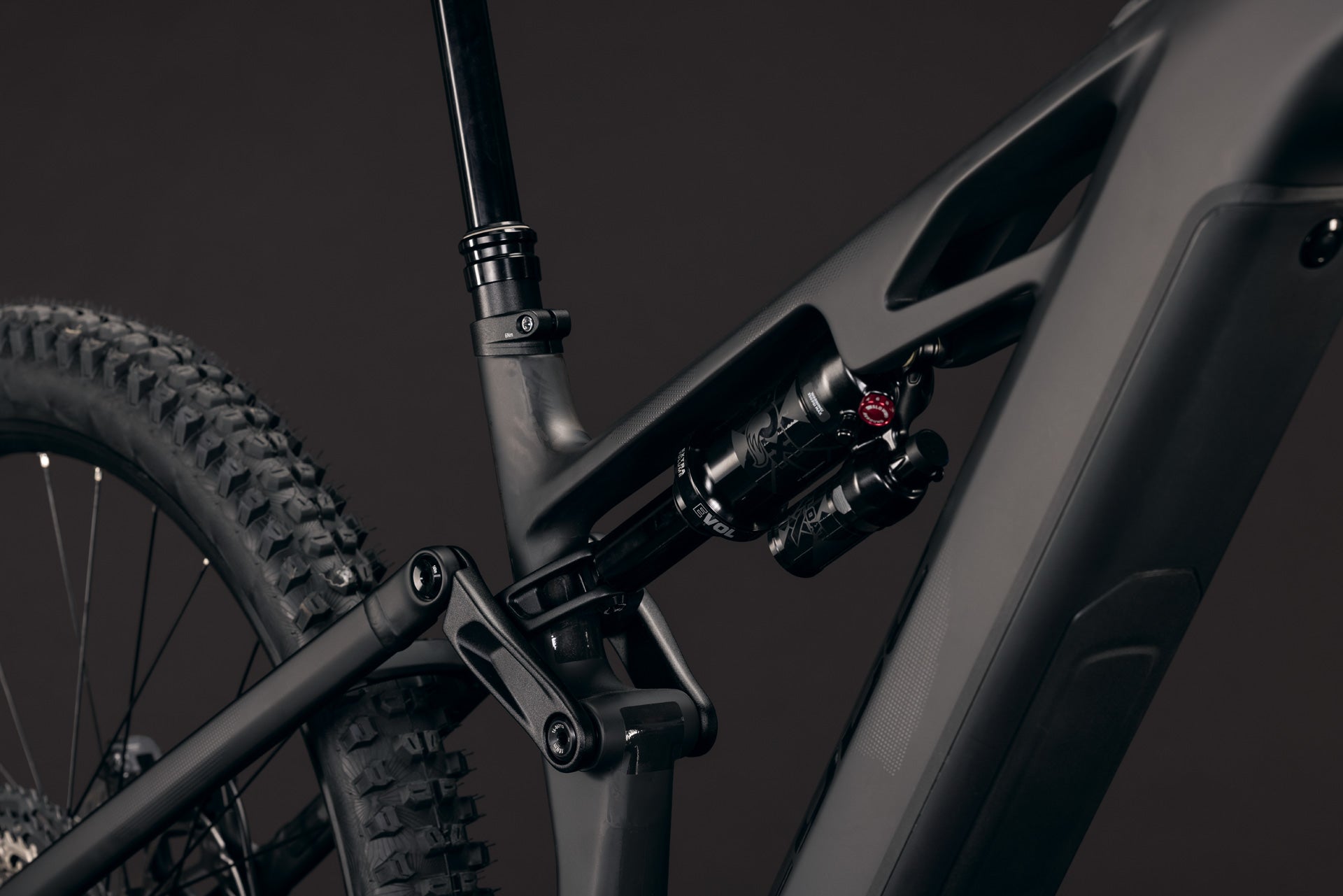

Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever
shock hardware
Front: 30x8mm, Rear: DU-Bushing 12.7mm
E-bike system
drive unit
Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
Remote
Bosch Mini Remote
battery
Bosch PowerTube 800

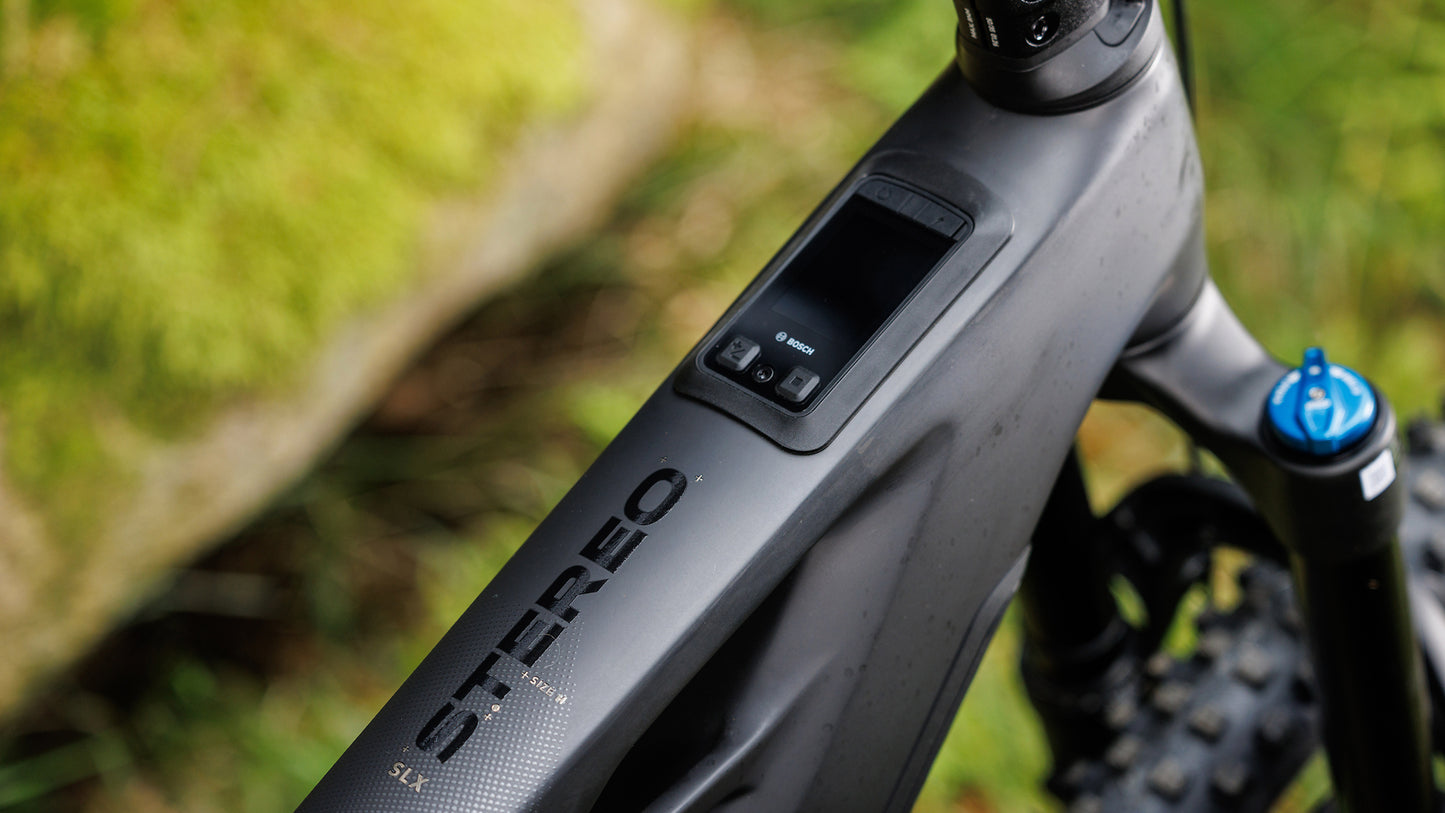

display

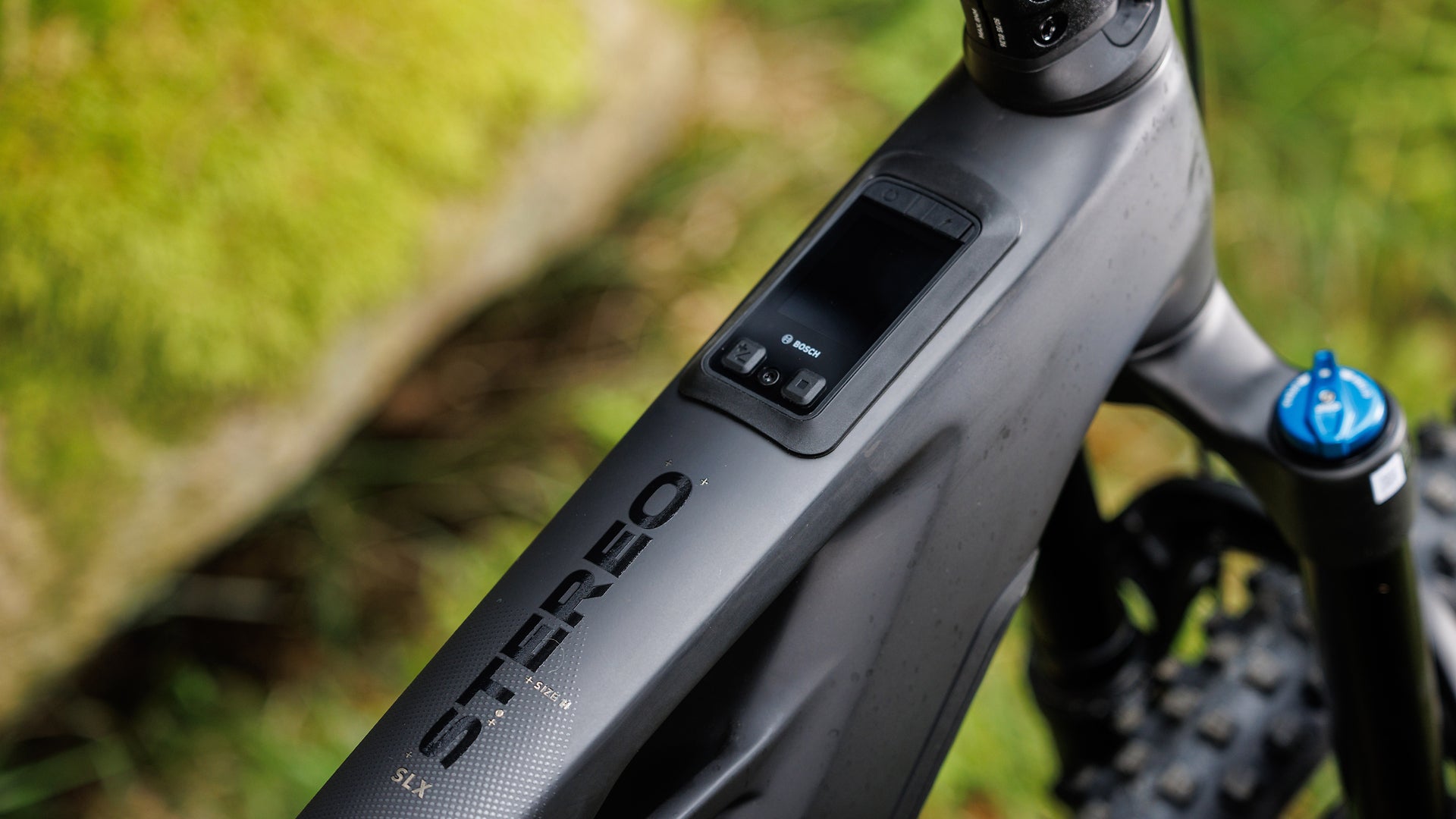

Bosch Kiox 400C
charger
Bosch 4A
Drivetrain & brakes
brake system
Shimano XT BR-M8220, Hydr. Disc Brake (200/200)
rear derailleur
Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
shifters
Shimano Deore XT SL-M8210-IR, Direct Attach, Single Click

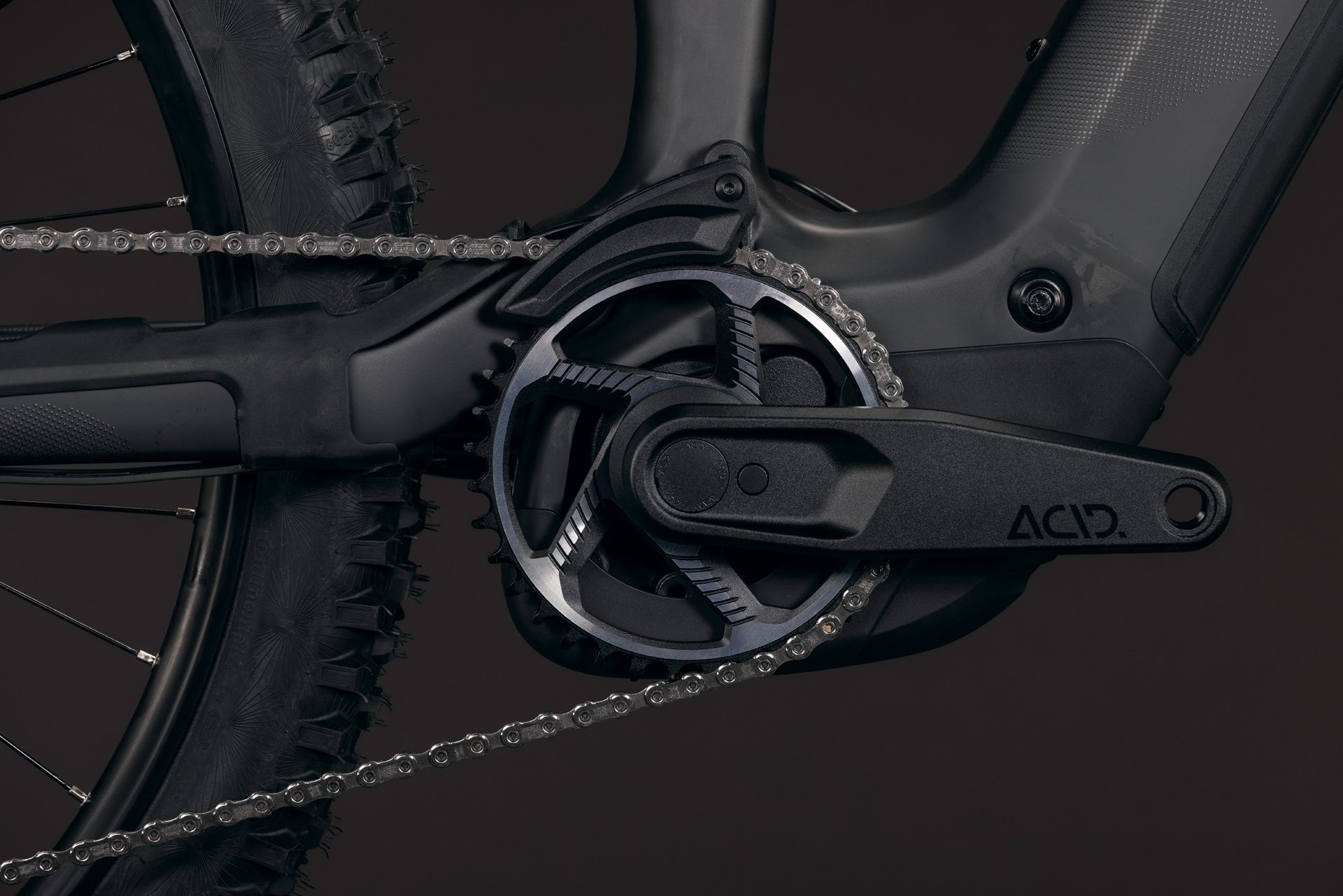

crankset

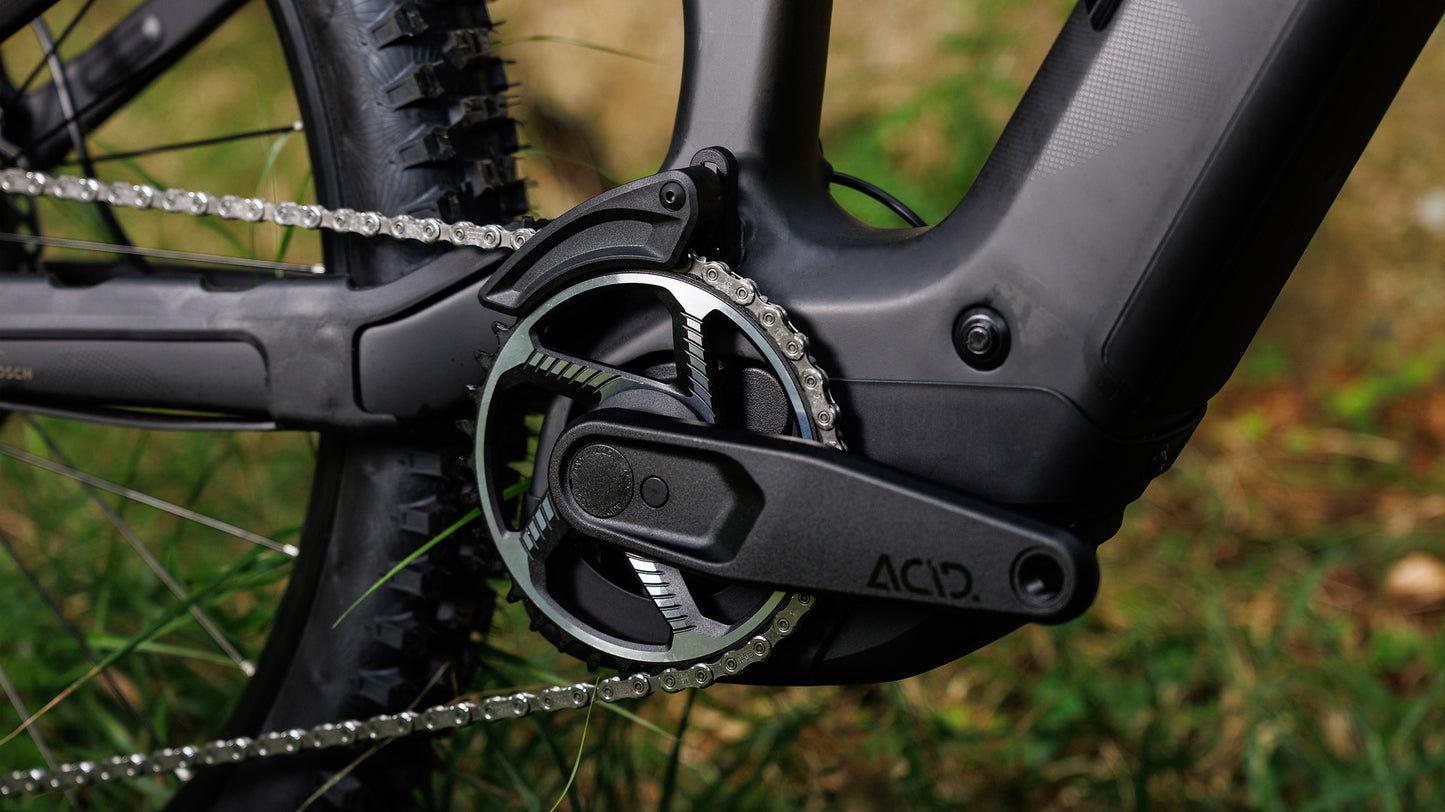

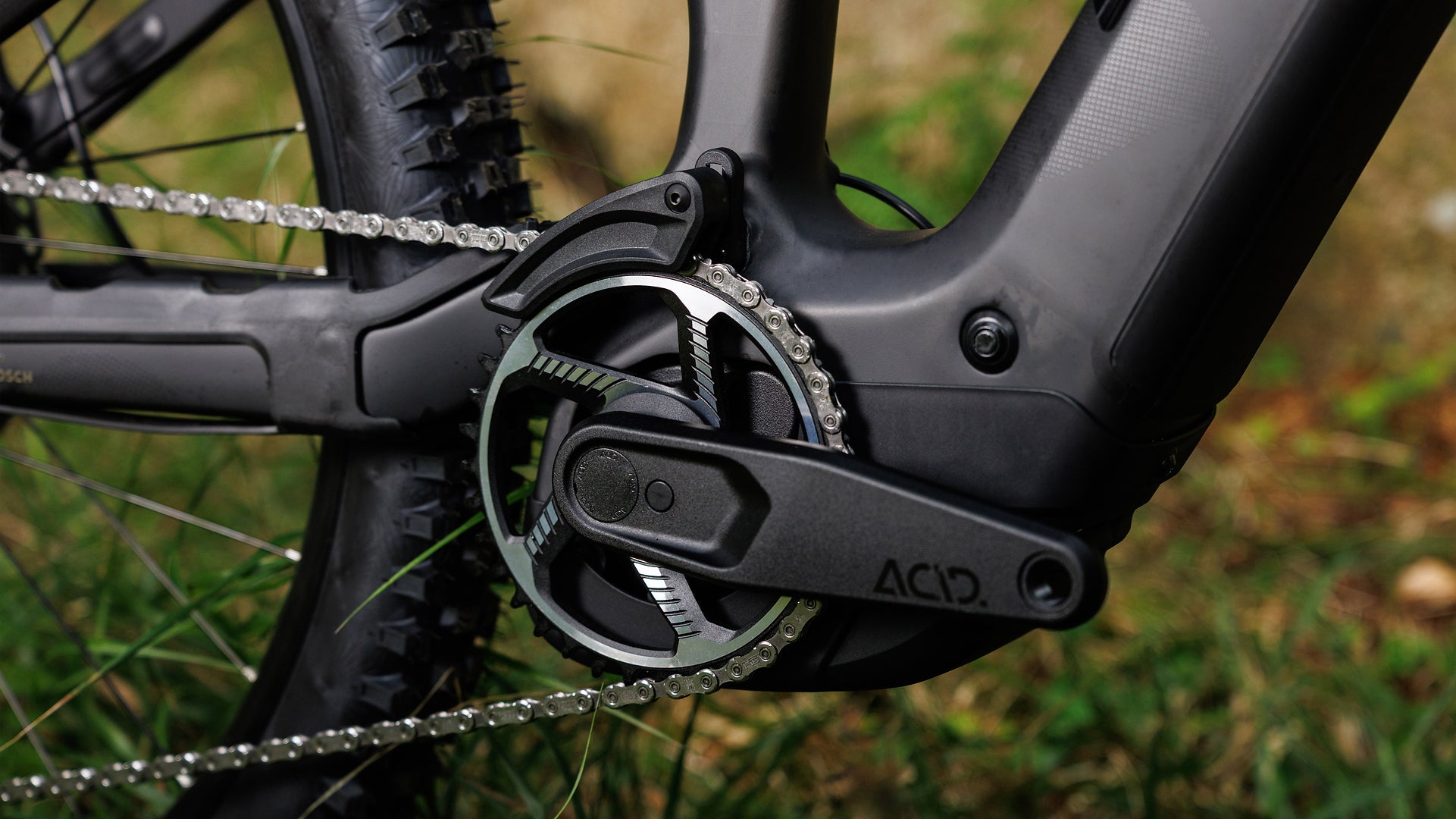

ACID MTB Hybrid Pro, 36T
cassette
Shimano XT CS-M8200, 10-51T
chain
Shimano XT CN-M8100
chain guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

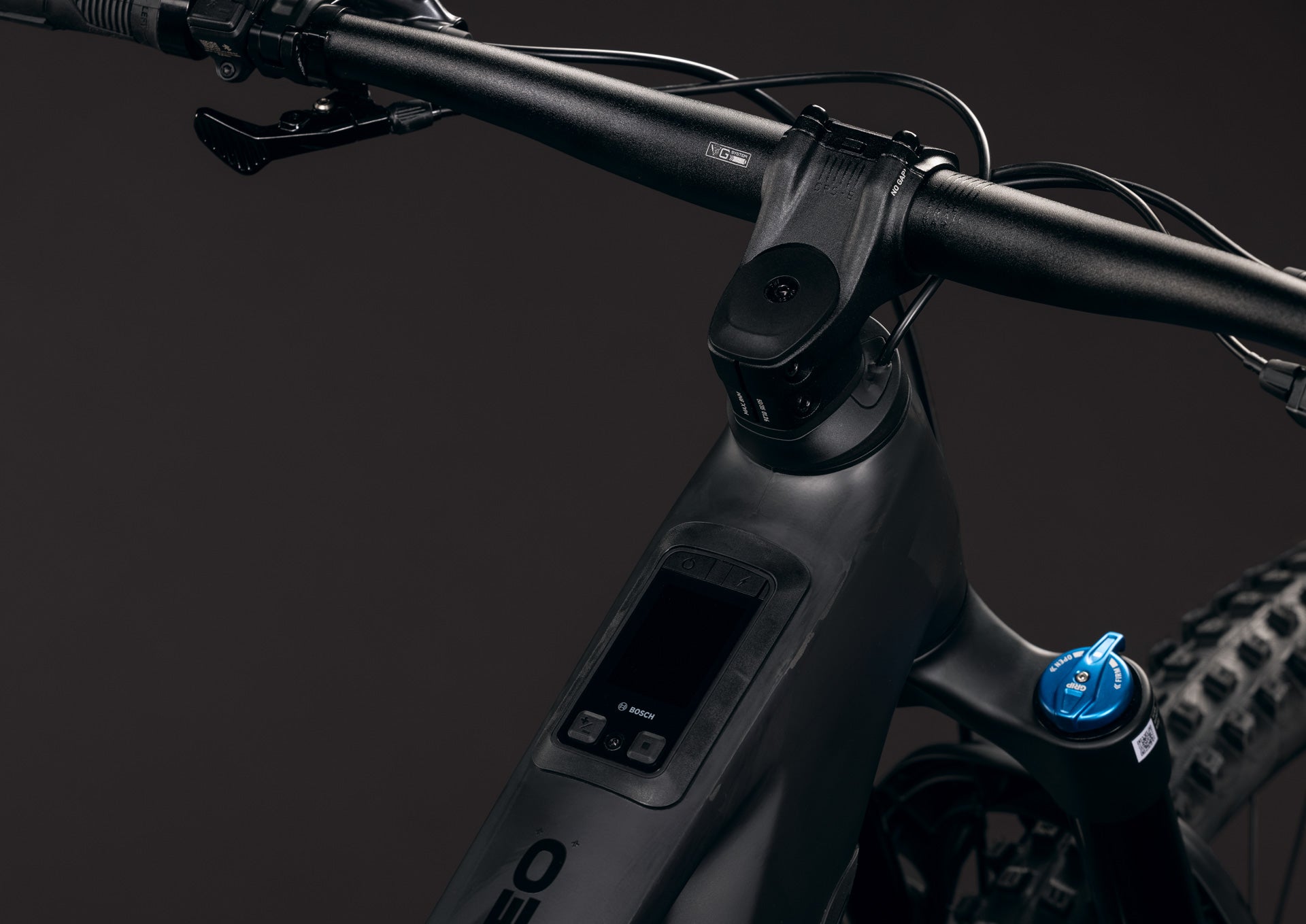

Cockpit
headset

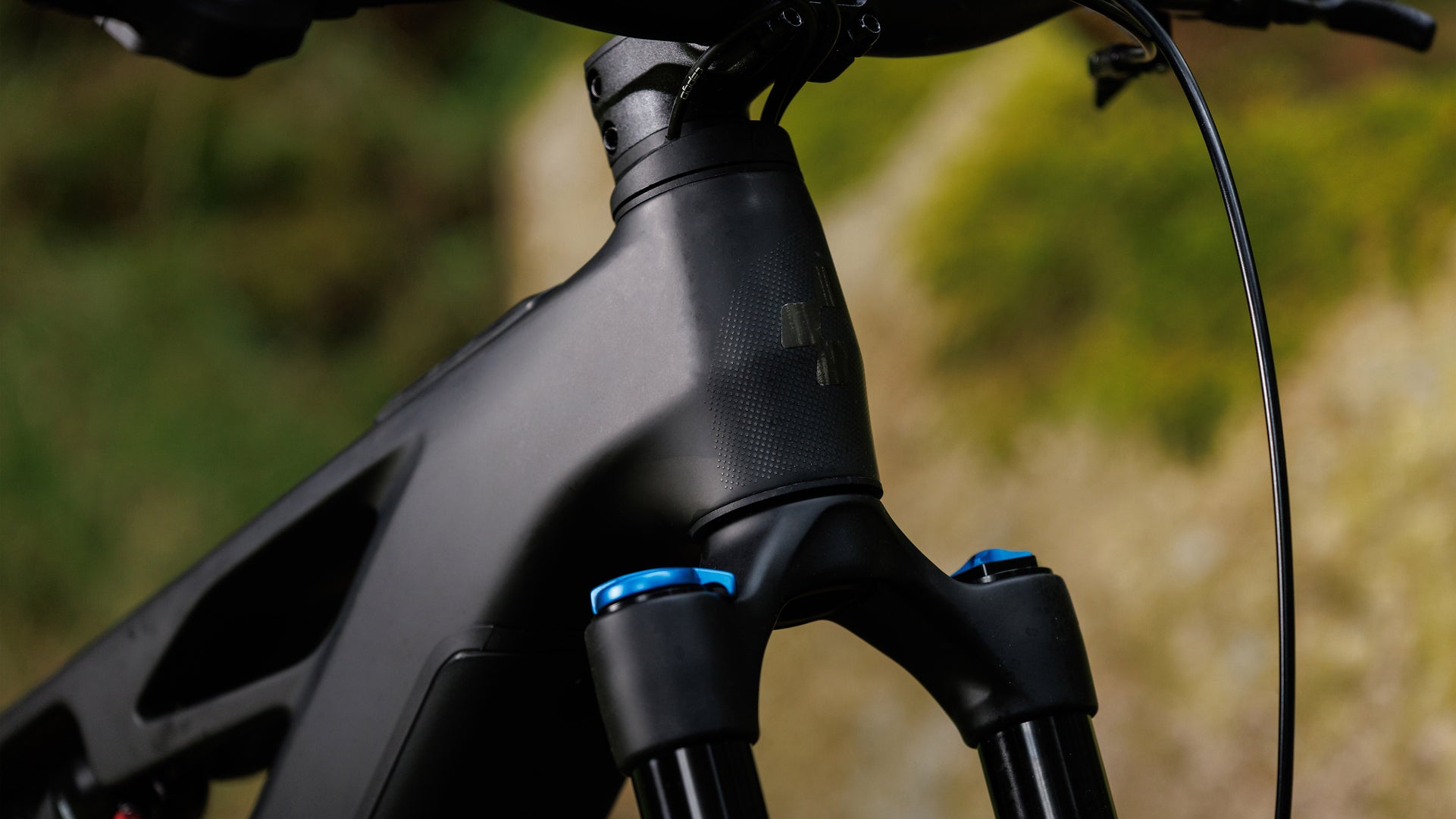

Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem
CUBE Performance Stem E-MTB 35, FPI-Link

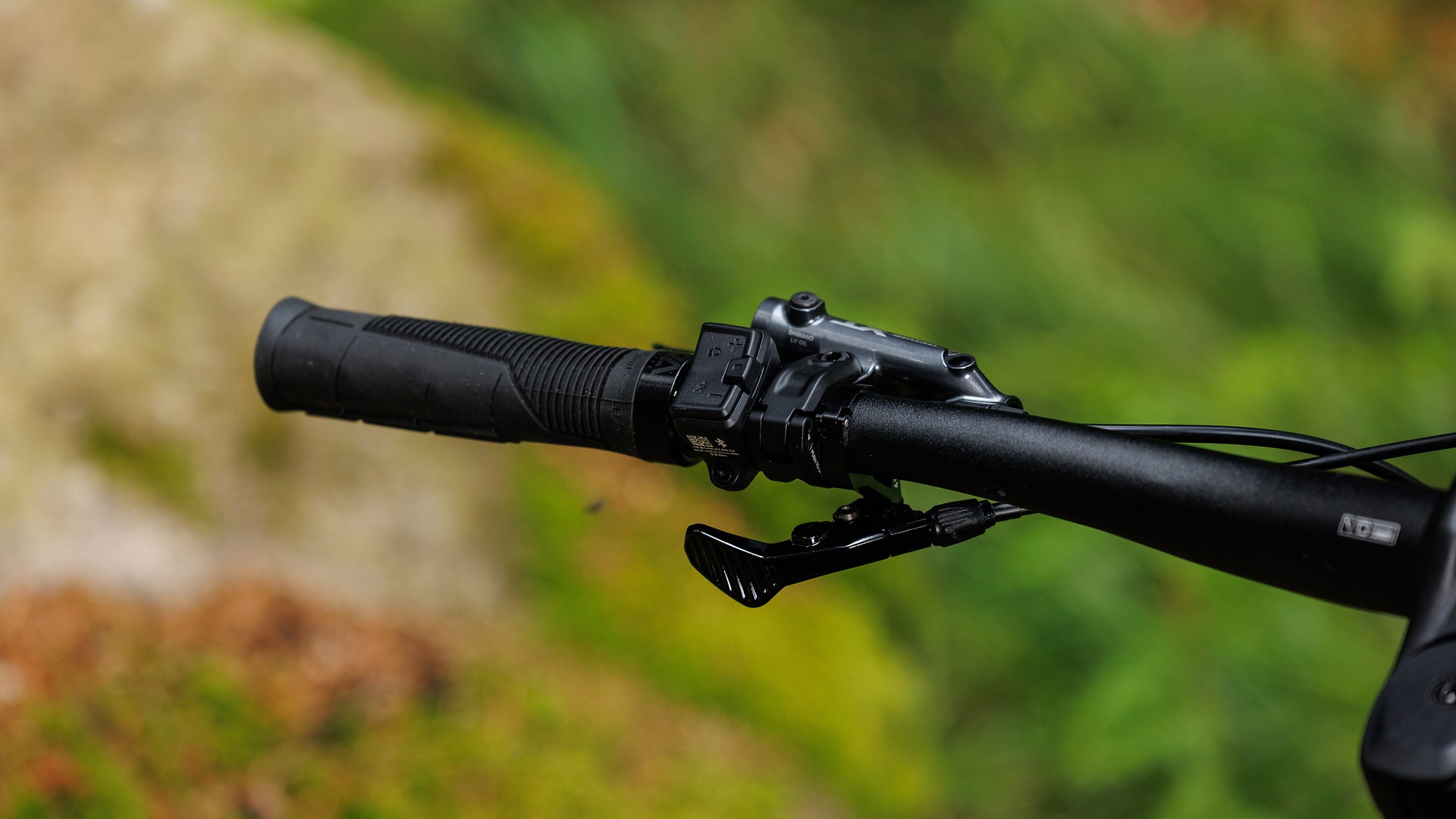

handlebar
CUBE Rise Trail Bar 35 VariGrip System
grips
ACID Endure VariGrip System
Wheels
wheelset
Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
front tyre
Conti Argotal, Enduro Soft, Tubeless Ready, 2.4
rear tyre
Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
Finishing kit
saddle
ACID Venec EMTB Trail 140
seat post

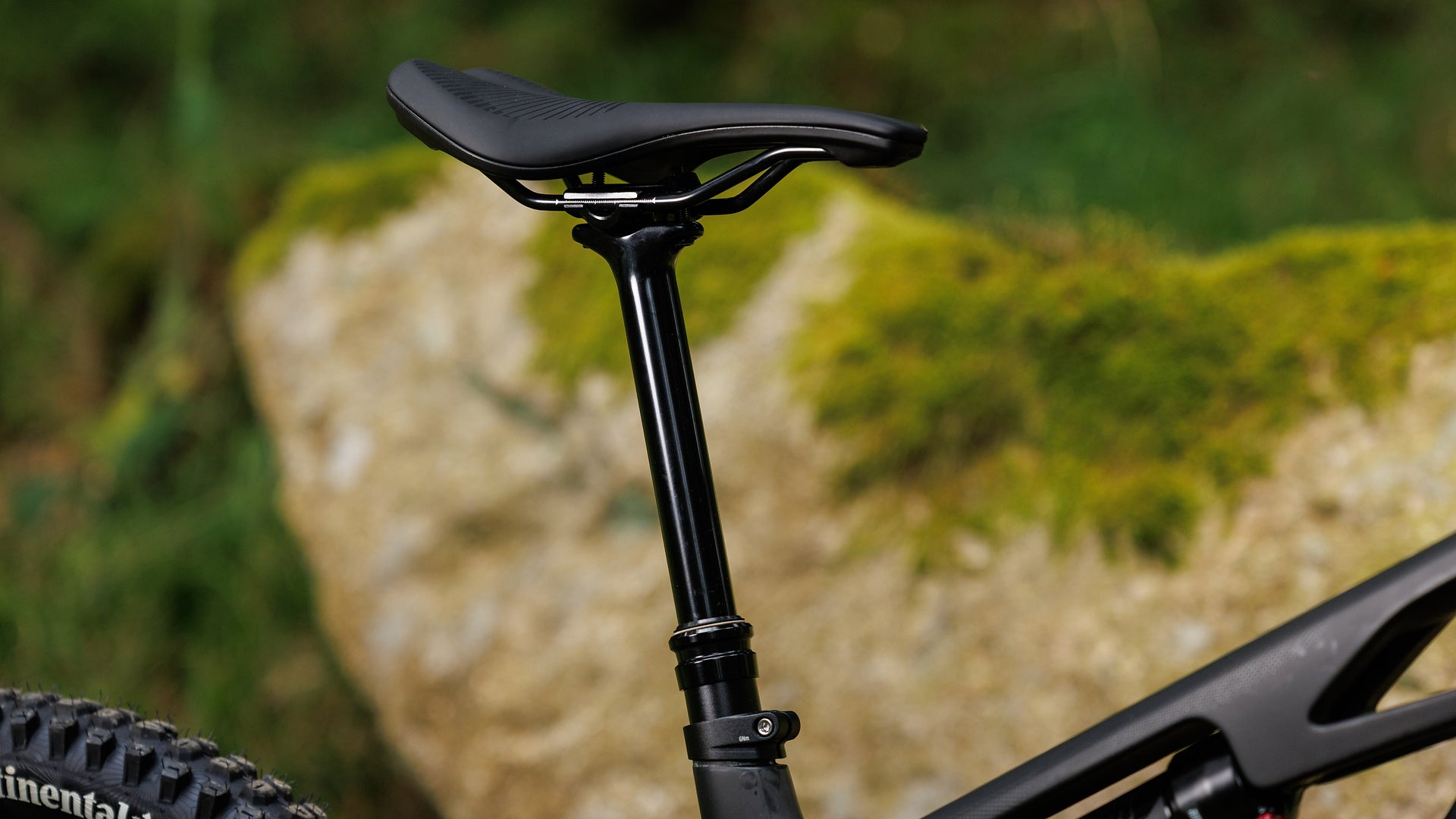

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
pedals
ACID PP MTB
Product information
colour
blackline
weight
24,5 kg
Art. No
1104600
