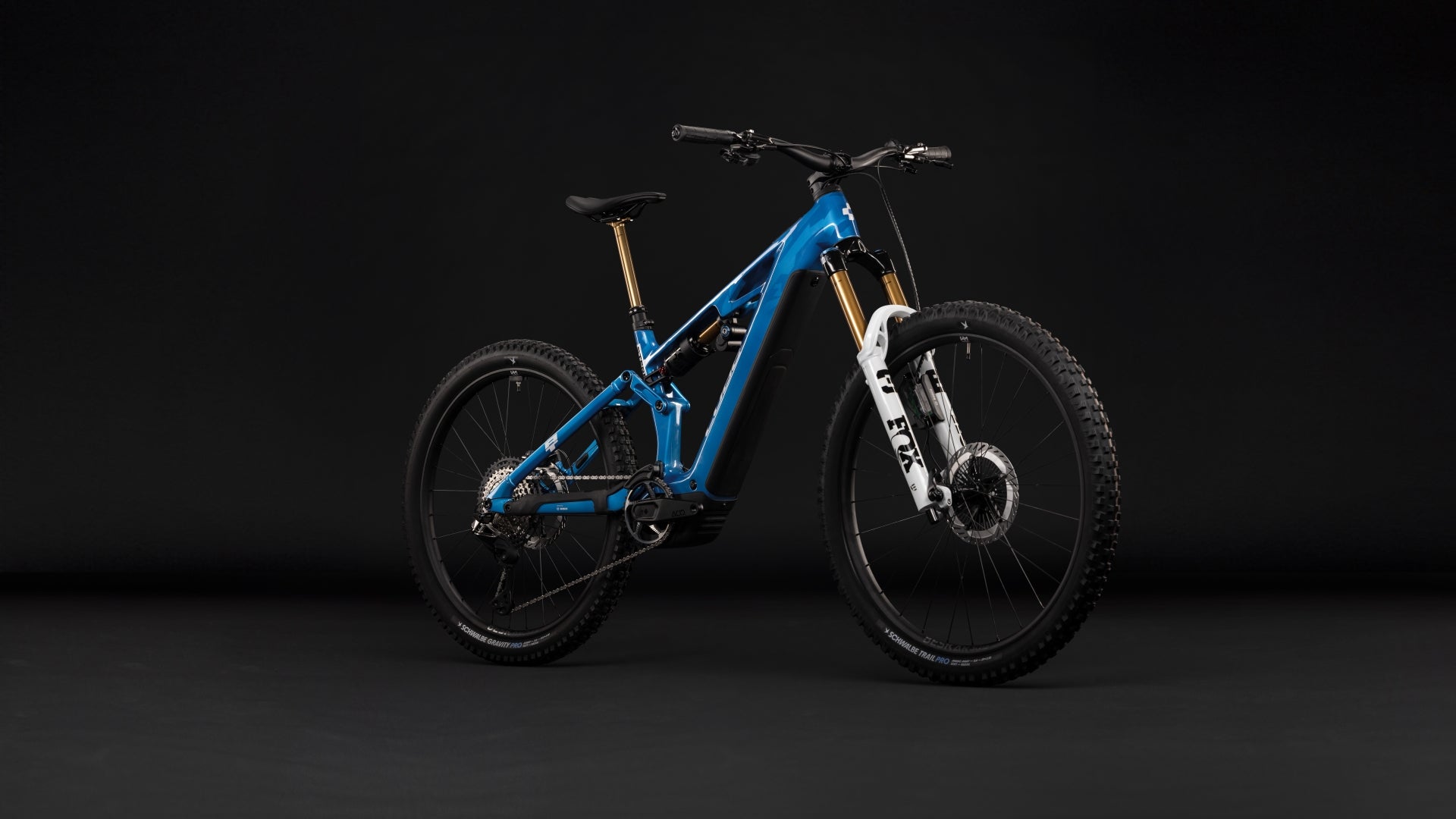

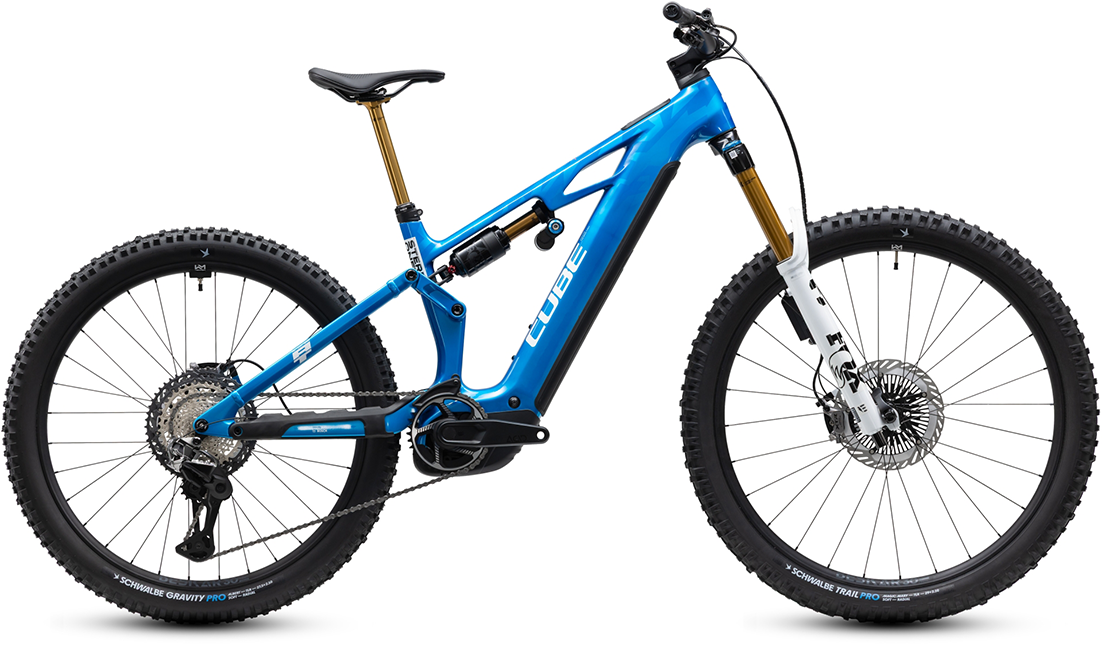

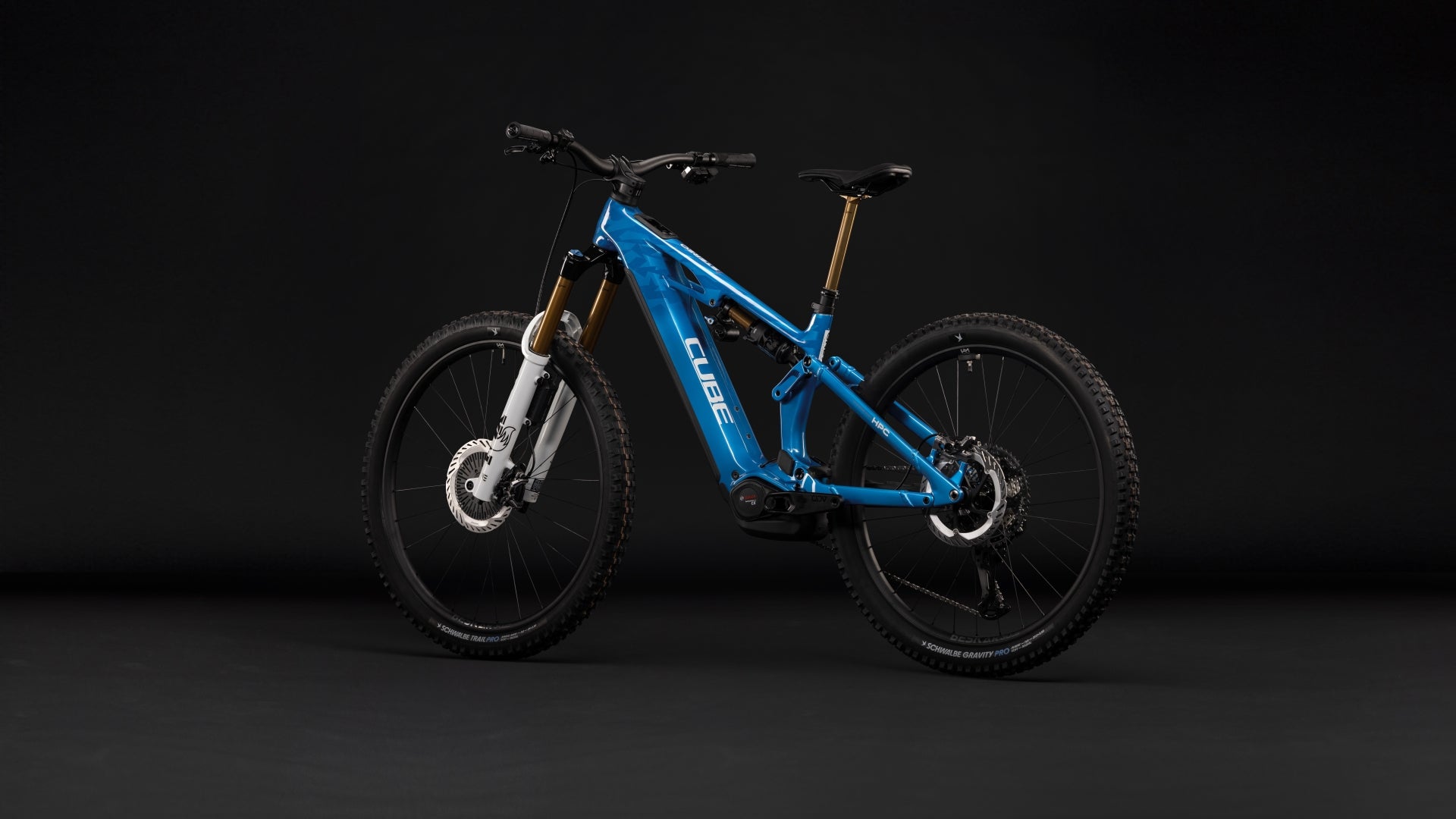

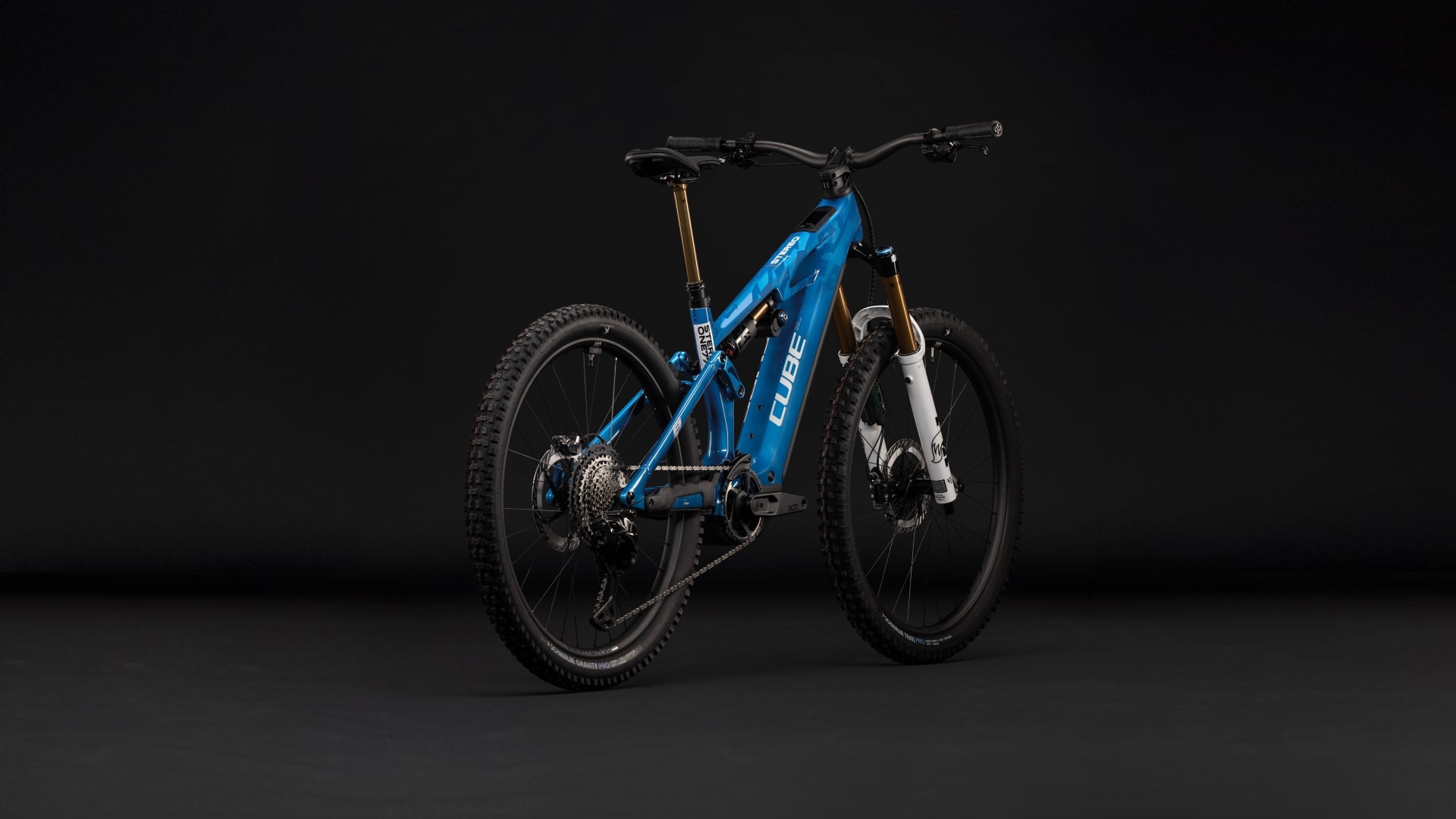

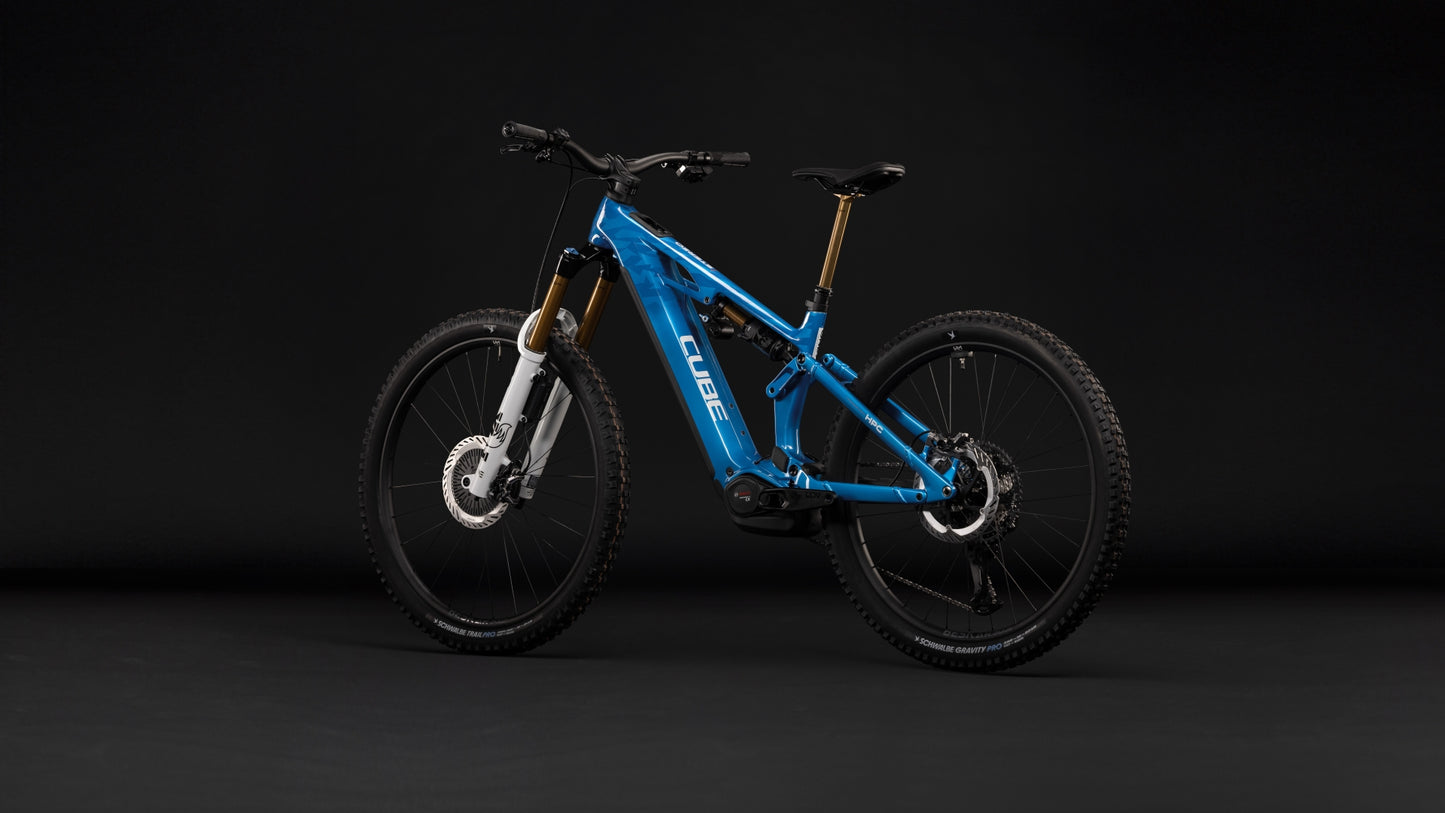

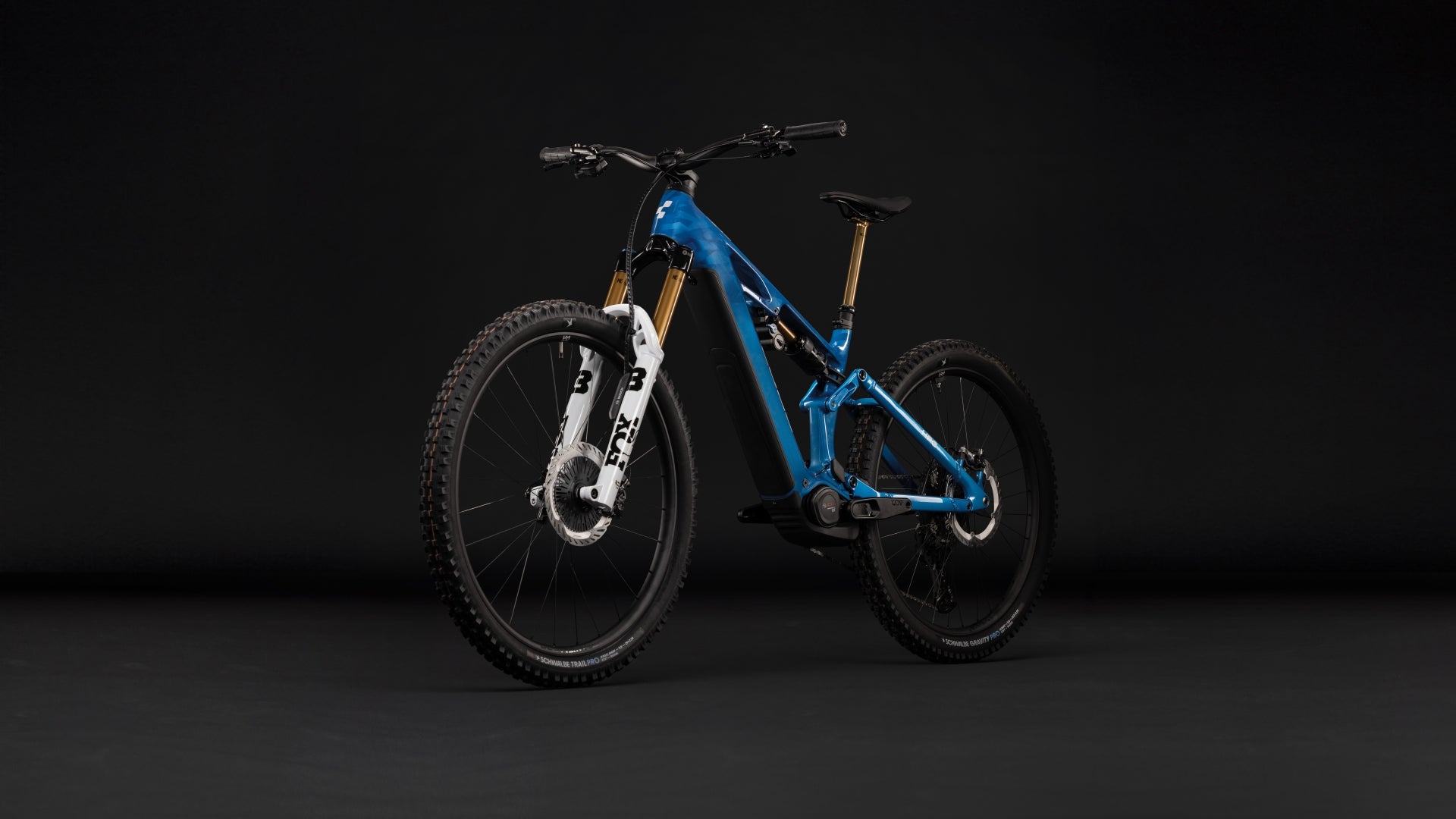

CUBE STEREO HYBRID ONE77 HPC AT 800 ACTIONTEAM 2027

Frame Material: Carbon Front Triangle
Battery: 800Wh
Wheels: 29" x 27.5"
Headset Angle Adjustment: 0.6°
Configuration: ABS

Details

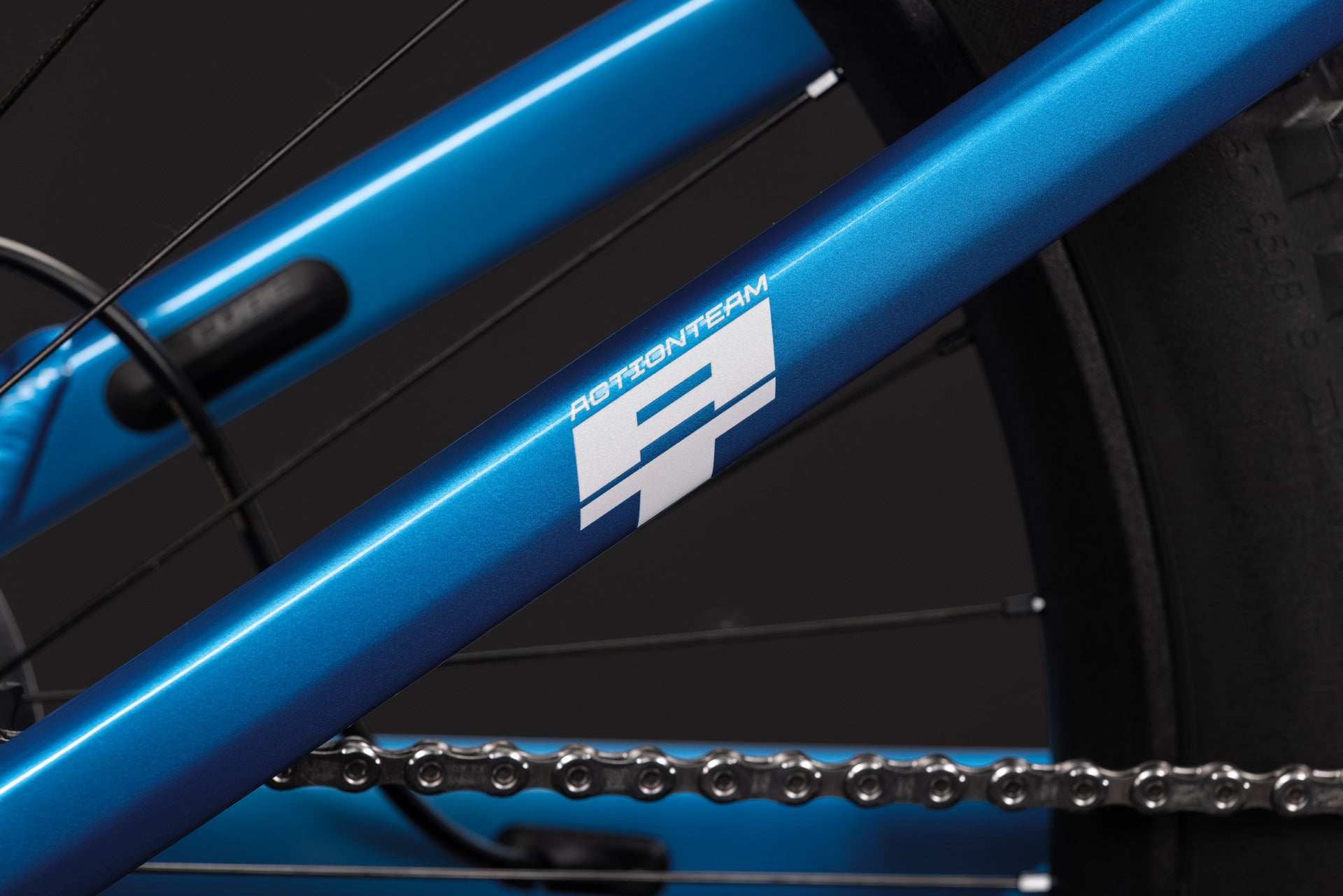

The Stereo Hybrid ONE77 HPC AT's distinctive Actionteam livery has evolved to include a dynamic, geometric pattern that adds extra depth to the finish. It also gives a hint of this bike's serious intent. With CUBE kinematics, Bosch CX drive with 800Wh battery and Shimano XTR ABS Pro hydraulic disc brakes, it's all set for big days out in big mountains.

Frame

frame

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

size

S, M, L, XL

Suspension

Suspension fork

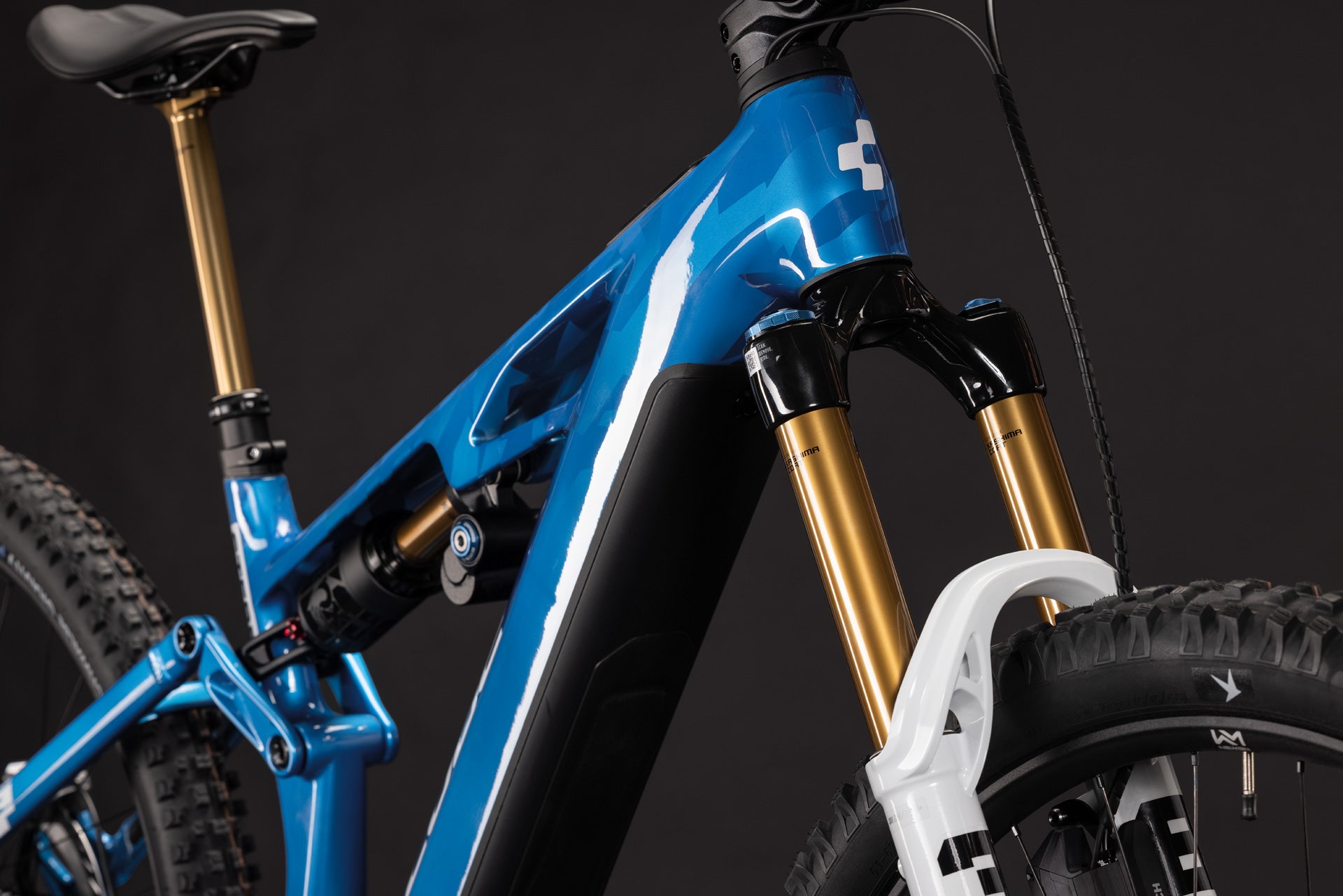

Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm

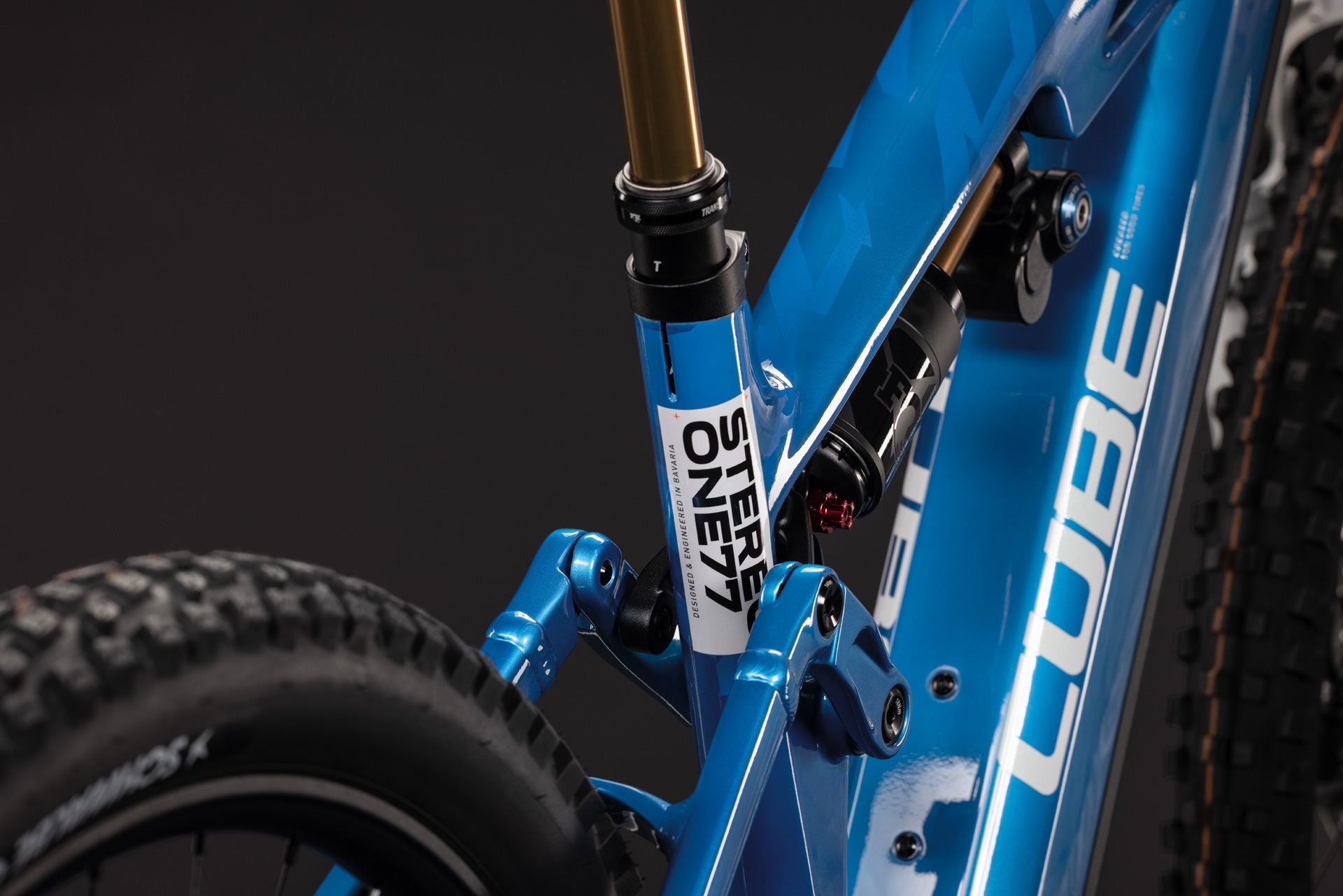

shock

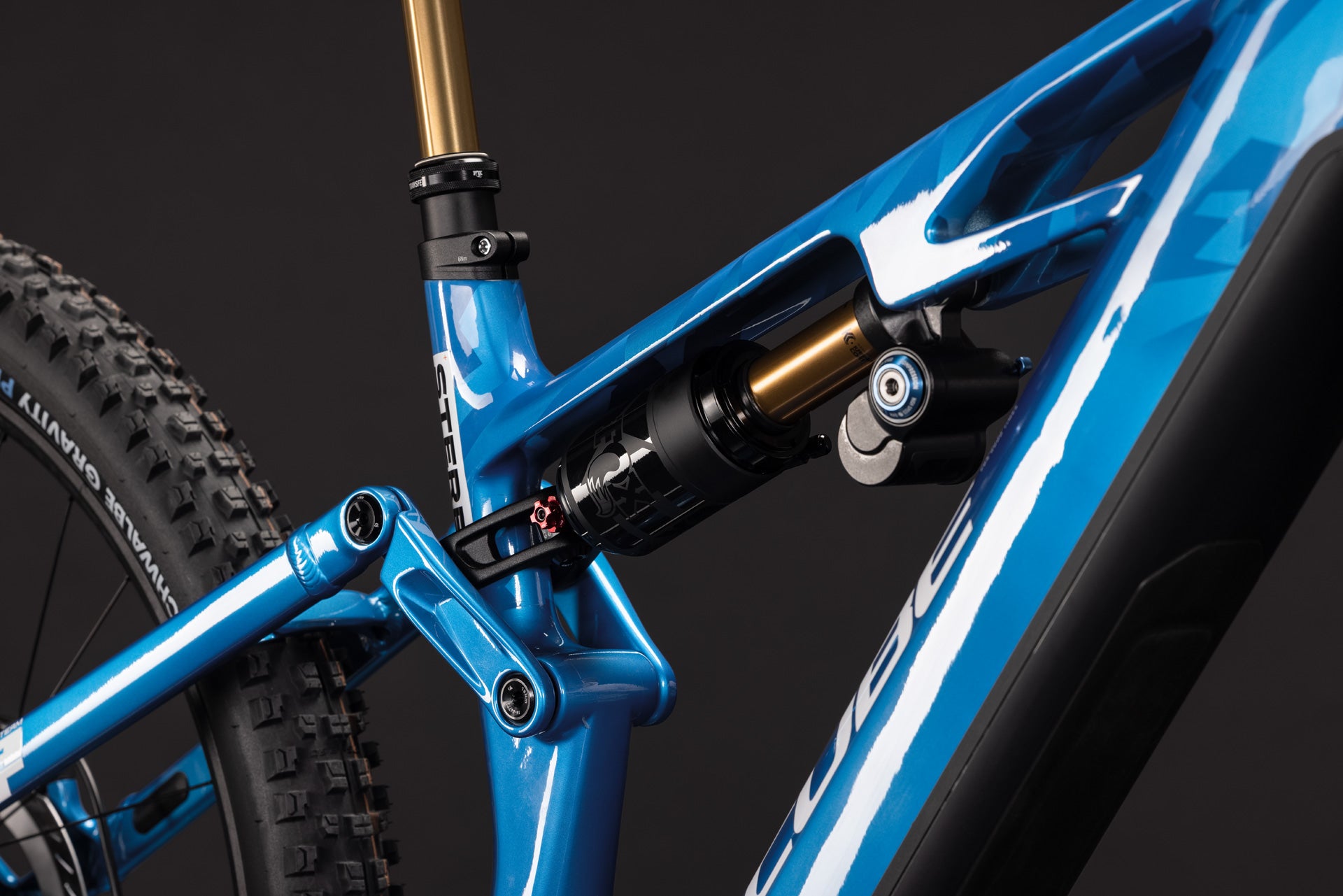

Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated

shock hardware

Front: 30x8mm, Rear: DU-Bushing 12.7mm

E-bike system

drive unit

Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)

Remote

Bosch Mini Remote

battery

Bosch PowerTube 800

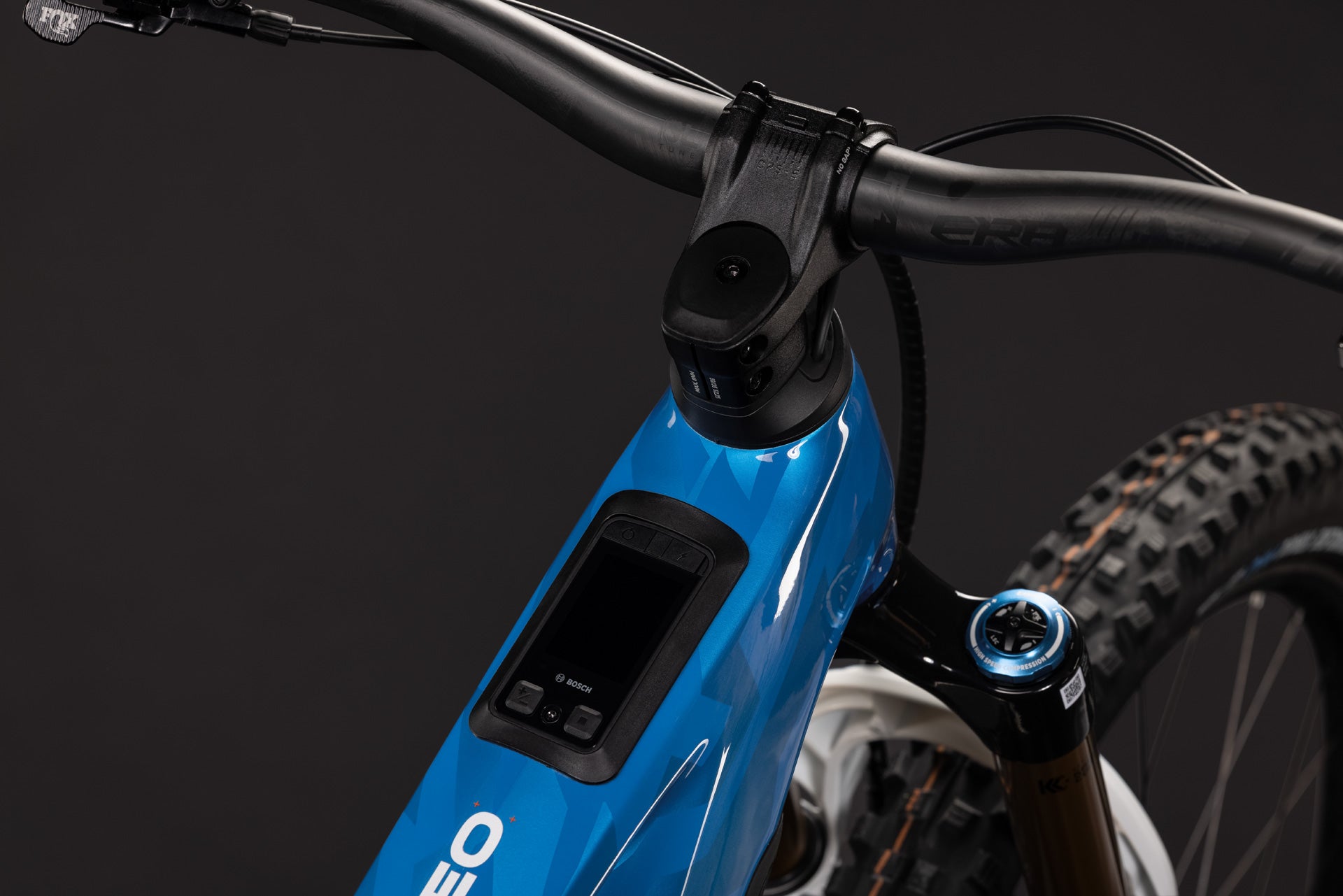

display

Bosch Kiox 400C

charger

Bosch 4A

ABS technology

Bosch ABS Pro

---

Drivetrain & brakes

brake system

Shimano XTR BR-M9220, Hydr. Disc Brake w/ Front ABS (203/203)

rear derailleur

Shimano XTR Di2 RD-M9260, 12-Speed, Electronic Shifting System

shifters

Shimano XTR Di2 SW-M9250-I, Direct Attach

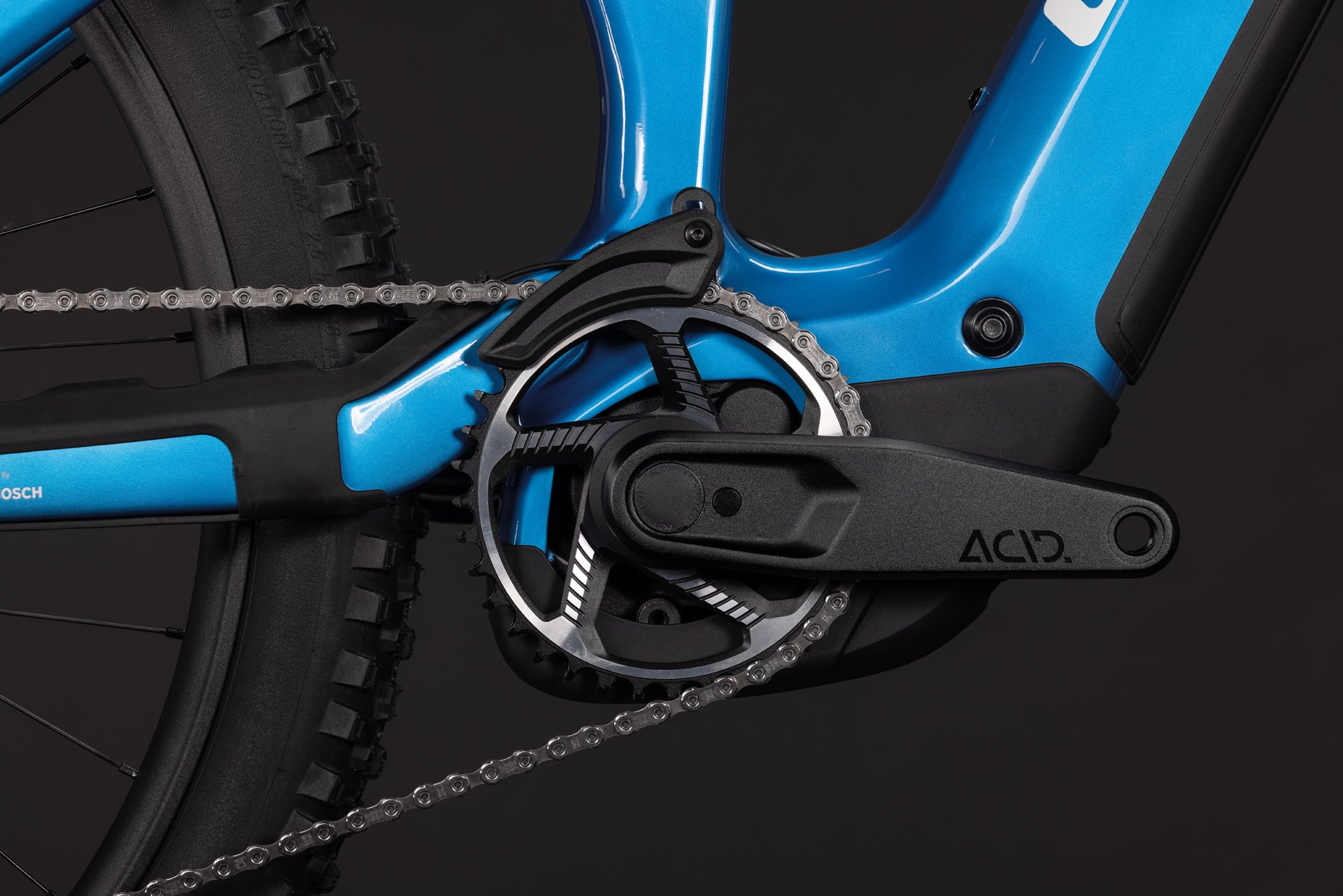

crankset

ACID MTB Hybrid Pro, 36T

cassette

Shimano XT CS-M8200, 10-51T

chain

Shimano XT CN-M8100

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

headset

Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface

Stem

CUBE Performance Stem E-MTB 35, FPI-Link

handlebar

Race Face ERA 35

grips

ACID Endure

Wheels

wheelset

Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready

front tyre

Schwalbe Magic Mary Trail Pro, Addix Soft, Kevlar, 2.5

rear tyre

Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5

Finishing kit

saddle

ACID Venec EMTB Trail 140

seat post

Fox Transfer Factory 31.6mm, Kashima Coated

pedals

ACID PP MTB

Product information

colour

actionteam

weight

24,9 kg

Art. No

1104810

---
